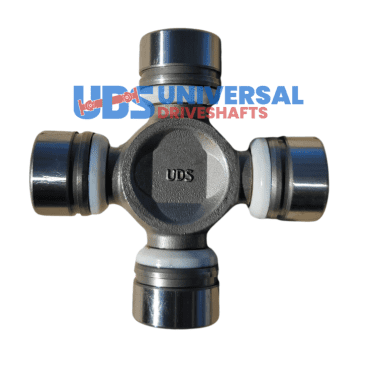

UDS 5-795XU Universal Joint – 3R Series Sealed – GM APP

The 5-795x is a 3R series -- 3R series -- specialty cross pattern inside snap ring retention universal joint measuring 1.125" cap dia | 2.556" width. The 5-795x is sealed, no grease fitting required. Every 5-795x is verified for cap diameter, bearing width, and snap ring groove dimensions before it ships from Universal Driveshafts.

5-795X -- 3R Series Cap & Width Specifications

The this component specs: 1.125" cap dia | 2.556" width. Cap diameter determines which yoke bore it fits -- the cap must seat fully into the yoke without play. Bearing width (2.556" across the body) controls the span between yoke ears. A cross that is too wide won't fit; too narrow and the snap rings don't seat in the groove. SEALED.

Verify the yoke bore diameter against the this u-joint cap size before installing. The snap ring style (inside snap ring retention) must match the yoke groove pattern -- OSR yokes have an external groove; ISR yokes have an internal groove. The it is factory-sealed -- no maintenance interval, no grease fitting. Correct installation torque on the strap kit or U-bolt is critical -- undertorqued straps allow the cap to walk under load.

Installation Notes for this unit

Before installing the the assembly, clean the yoke bores of any rust, burrs, or old bearing material. The bearing cups must drop in by hand -- never drive them in with a hammer directly on the cup. Use a proper cross-and-bearing installation tool or a press. Driving a cup in at an angle cocks the needle bearings and destroys the this u-joint before it ever sees load.

After installation, verify full rotation without binding. A binding cross indicates a cup is cocked or seated too deep. The it should articulate freely through the full operating angle of your driveshaft before the vehicle is lowered off the lift.

Key Features

• Series: 3R series -- 3R series -- specialty cross pattern
• Cap dia: 1.125" -- must match yoke bore exactly
• Width: 2.556" -- controls yoke ear span
• Style: inside snap ring retention -- verify yoke groove type before ordering
• Sealed -- factory pre-lubed, no maintenance required
• Part number: the partU
• Brand: UDS
• Note: SEALED

Specifications

• SKU: this componentU
• Part Number: this u-jointU
• Brand: UDS
• Series: 3R
• Cap Dia 1: 1.125"
• Width 1: 2.556"
• Snap Ring Style: ISR
• Lube: No -- sealed
• Notes: SEALED
