5-760X Non-Greasable Universal Joint – 1310WJ Series 5-297X | 1.188X2.188

5-760X UDS 1310WJ Series Sealed Universal Joint – ISR Style, Dana 30/35/44 Front Axle

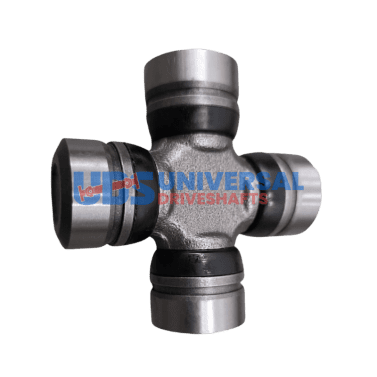

The 5-760X is a UDS 1310WJ series sealed (non-greasable) universal joint in ISR (inside snap ring) retention style. Cap diameter is 1.188" and width is 2.188". This joint is specified for front axle shaft applications on Dana 30, Dana 35, and Dana 44 axles used in Ford, Mopar, and GM vehicles.

Specifications

• Part Number: 5-760X
• Brand: UDS
• Series: 1310WJ
• Cap Diameter: 1.188"
• Width: 2.188"
• Style: ISR
• Lube: No – sealed
• Application: Dana 30, Dana 35, Dana 44 front axle shaft (Ford, Mopar, GM)

When installing the 5-760X, confirm the front axle shaft yoke accepts the 1.188" cap diameter and 2.188" width. The ISR retention style uses internal snap rings — the 1310WJ designation indicates a wider journal spacing than a standard 1310, so verify the exact cap and width against your Dana axle shaft specification. The sealed construction eliminates the need for grease service on this joint. The 5-760X is cross-referenced as 5-297X in some catalogs. Verify Dana 30, 35, or 44 front axle shaft joint specification before ordering to confirm the 1.188"x2.188" cap dimensions match your axle model year build.
