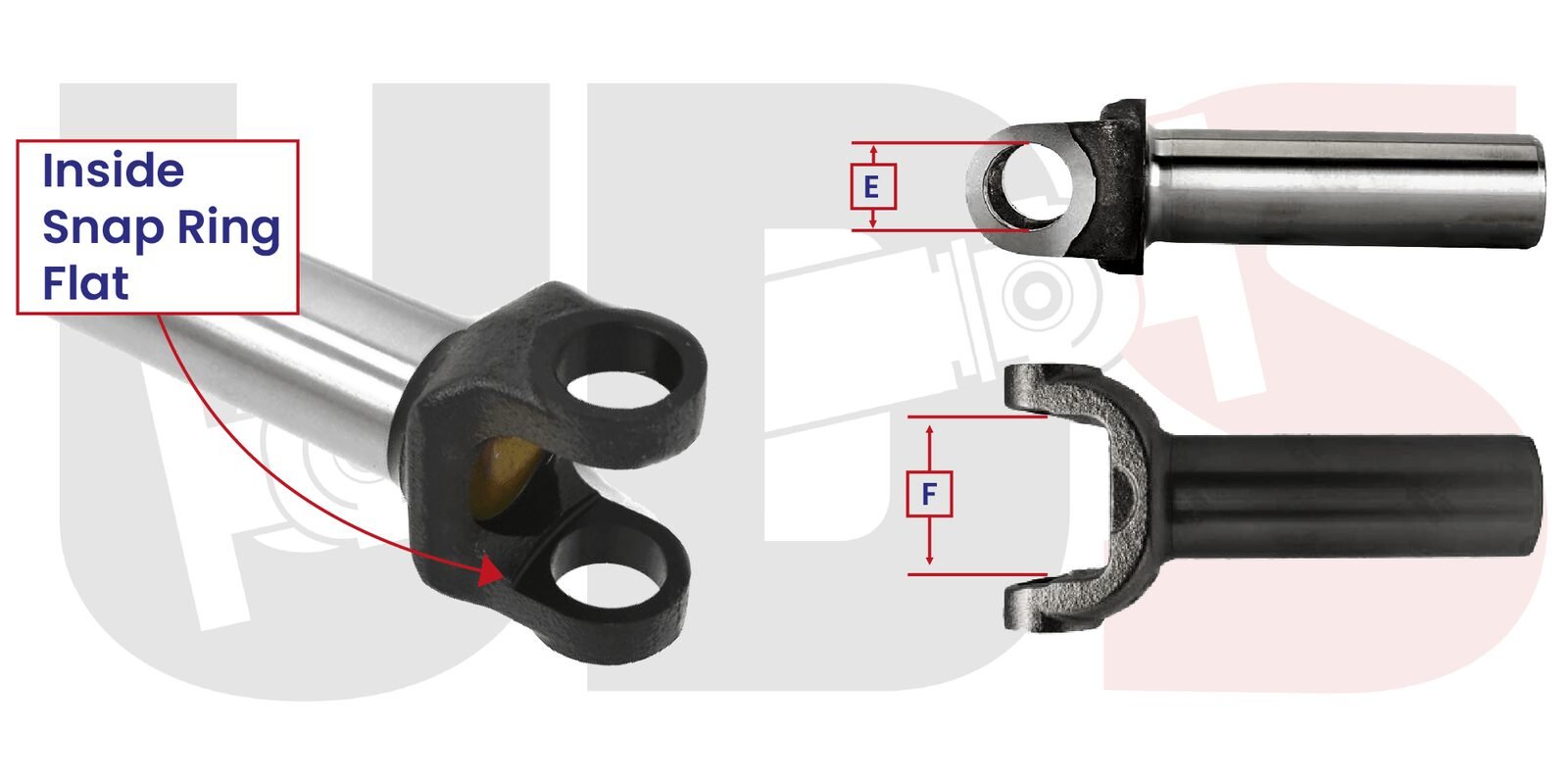

E.) Cap Diameter:
Diameter measured over bearing cap space.
F.) Width:
Distance Measured Between Machined Flats
Let Us Help You Find the Right Part
Fill out the form below and we will contact you with the right fit part number.
Common Inside Snap Ring U-joint Sizes and series
| Series | Width | Cap Diameter |
|---|---|---|
| 7260 CHRYSLER | 2 1/8″ = 2.125 | 1 5/64″ = 1.078 |
| 7290 CHRYSLER | 2 5/8″ = 2.625 | 1 1/8″ = 1.125 |
| 3R GM | 2 9/16″ = 2.563 | 1 1/8″ = 1.125 |
