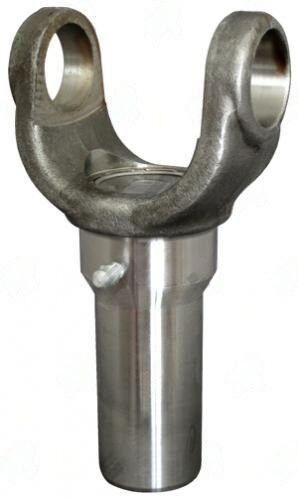

1303-21 – Slip Yoke – 1351-20 Series – 1.310″ Splines Dia – Center U Joint To End 6.00
$67.84
29 in stock
Description
1303-21 slip yoke, 1351-20 series, 20 splines at 1.310″ bore diameter, 6.00″ center-to-end. Direct replacement for transmission output shaft interface.
Full Description
The 1303-21 slip yoke is engineered for precise axial travel within the driveshaft assembly while maintaining the rotational torque path between transmission output and driveshaft. Rated for the 1351-20 series, it features 20 splines at 1.310" diameter with a center U-joint-to-end dimension of 6.00".
Function of the Slip Yoke
Slip yokes serve a critical suspension articulation function: as the drivetrain moves through suspension travel, the driveshaft must lengthen and shorten slightly. The splined bore of the slip yoke slides on the transmission tail shaft or transfer case output shaft, accommodating this length change without binding. Worn slip yoke splines cause driveline backlash, vibration, and eventually transmission seal damage. The 1303-21 replaces worn units with fresh, precise splines.
Specifications
| Parameter | Value |
|---|---|
| Part Number | 1303-21 |
| Series | 1351-20 |
| Spline Count | 20 |
| Spline Diameter | 1.310" |
| Center U-Joint to End | 6.00" |
| Application Notes | Toyota Land Cruiser |
Spline Fit and Seal Interaction
The 20-spline, 1.310" bore must match the transmission output shaft spline profile exactly. A loose fit causes clunking under load reversal; an oversized bore will not engage the shaft at all. The slip yoke also rides against the transmission extension housing seal -- a yoke with worn or scored sliding surfaces will damage the seal and allow fluid loss. The 1303-21 presents a clean, ground surface finish on the sliding area to protect the seal.
Installation Checklist
- Drain or contain transmission fluid before removing the yoke to prevent spillage
- Inspect extension housing seal; replace if it shows cracking or hardening
- Lightly oil splines before installing new yoke onto output shaft
- Confirm U-joint bore alignment with driveshaft front yoke before assembly
- Check for smooth axial movement through full suspension travel range
- Verify no transmission fluid leaks after a test drive
Availability
Universal Driveshafts stocks the complete 1351-20 series slip yoke family. The 1303-21 ships same-day. For specialty applications or non-standard spline profiles, our engineering team can advise on custom yoke options.
Additional information
| Center u joint to end | 6.00 |
|---|---|
| Notes | Toyota Land Cruiser |
| Partn number | 1303-21 |
| Series | 1351-20 |
| Splines count | 20 |
| Splines dia | 1.310 |
