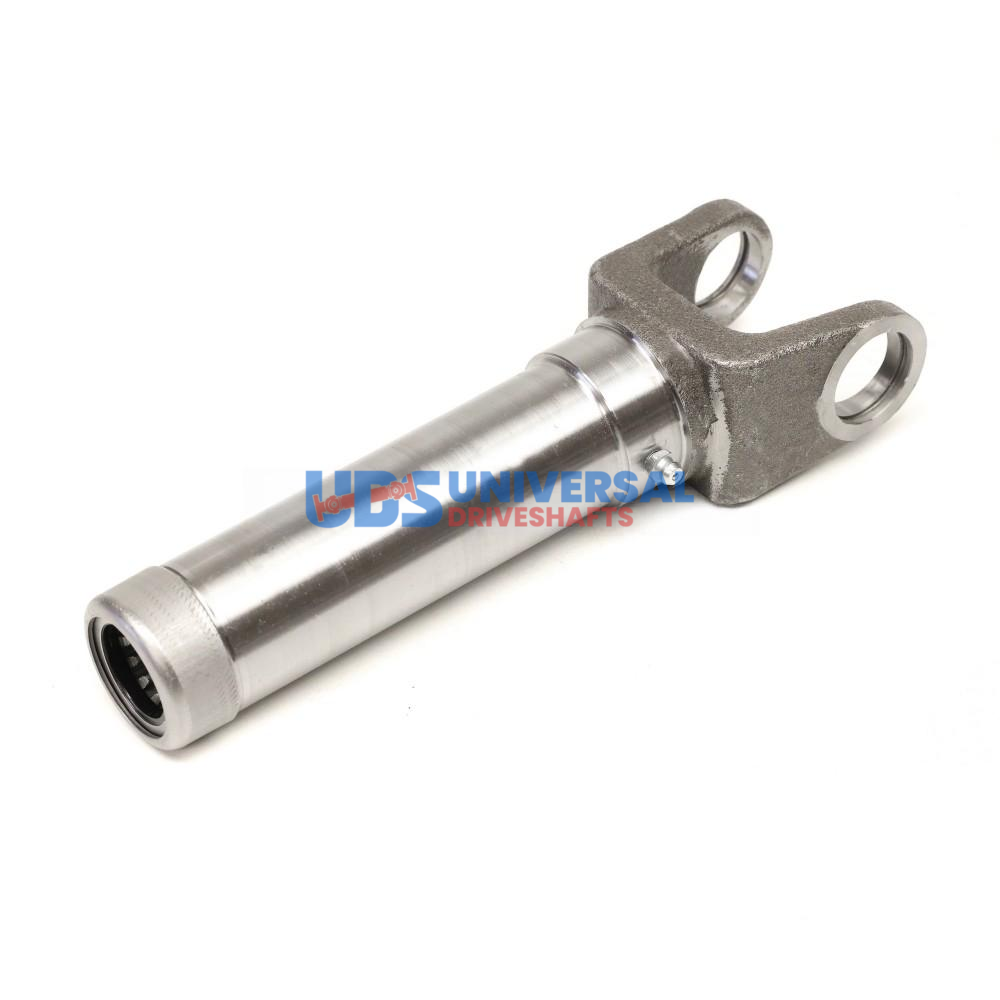

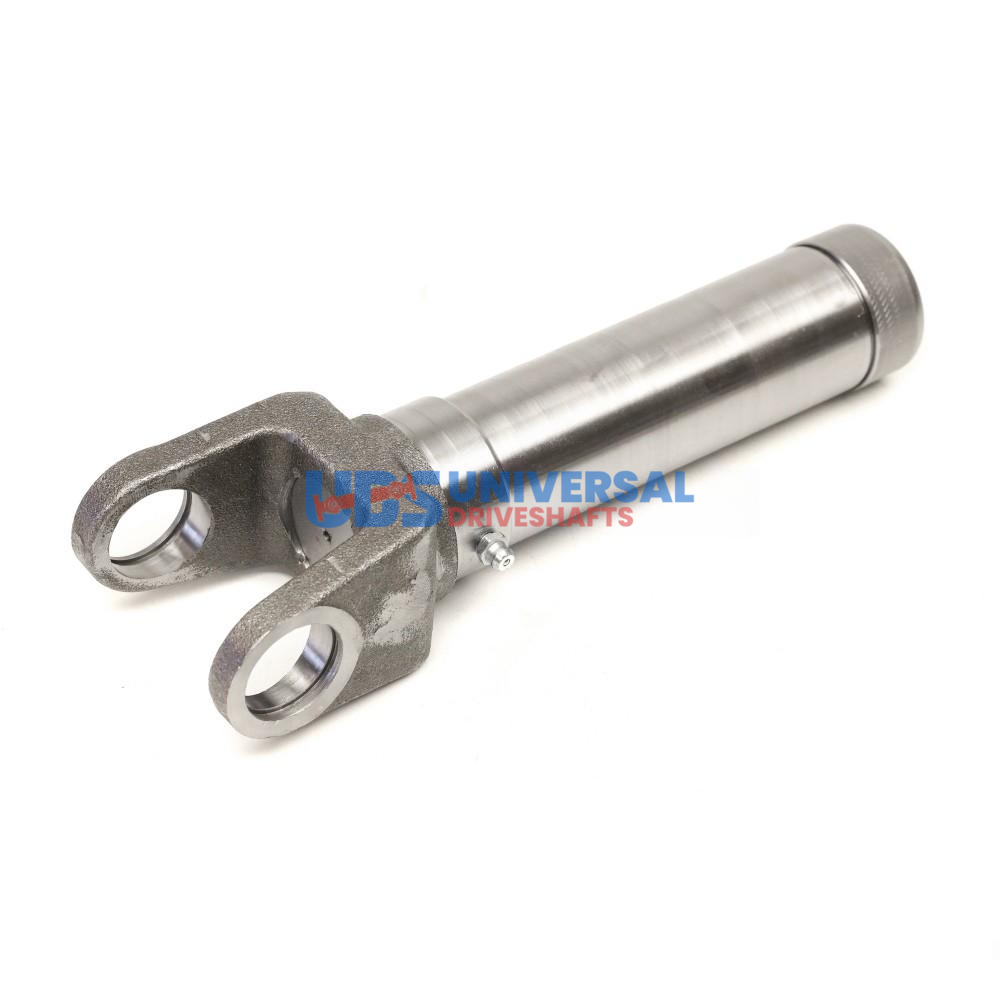

2-3-1210KX Slip Yoke 1210 Series , 27×68 series, Splines: 1.250×16 , Centerline To End: 8.016 Inch
$49.52
9 in stock
18
People watching this product now!
Description
2-3-1210KX 1210 series slip yoke. 1.250 in x 16 spline, 8.016 in center U-joint to end. Verify spline count and diameter against stop shaft before ordering.
Full Description
2-3-1210KX 1210 Series Slip Yoke
The 2-3-1210KX is a 1210 series slip yoke with a 1.250-inch spline diameter and 16-spline count. At 8.016 inches from the U-joint centerline to the open end, this yoke provides adequate engagement depth for standard 1210 series applications. The splined bore slides over the stop shaft welded to the front driveshaft section, accommodating axial movement as the suspension cycles.
Specifications
- Part Number: 2-3-1210KX
- Series: 1210
- Spline Diameter: 1.250 in
- Spline Count: 16
- Center U-Joint to End: 8.016 in
When fitting the 2-3-1210KX, verify both the spline diameter and count against the stop shaft before installation. A 1210 series stop shaft runs 1.250 inches at 16 splines; any mismatch will prevent full engagement. The 1210 series sits at the lower end of the torque capacity range, so confirm drivetrain torque requirements are within series limits before specifying this yoke for heavy-load applications.
The 2-3-1210KX is interchangeable with other 1210 series slip yokes sharing the same 1.250 x 16 spline specification. Confirm the 8.016-inch CJ-to-end dimension provides sufficient working length for your driveshaft assembly before ordering.
Additional information
| Center u joint to end | 8.016 |
|---|---|
| Series | 1210 |
| Splines count | 16 |
| Splines dia | 1.250 |
