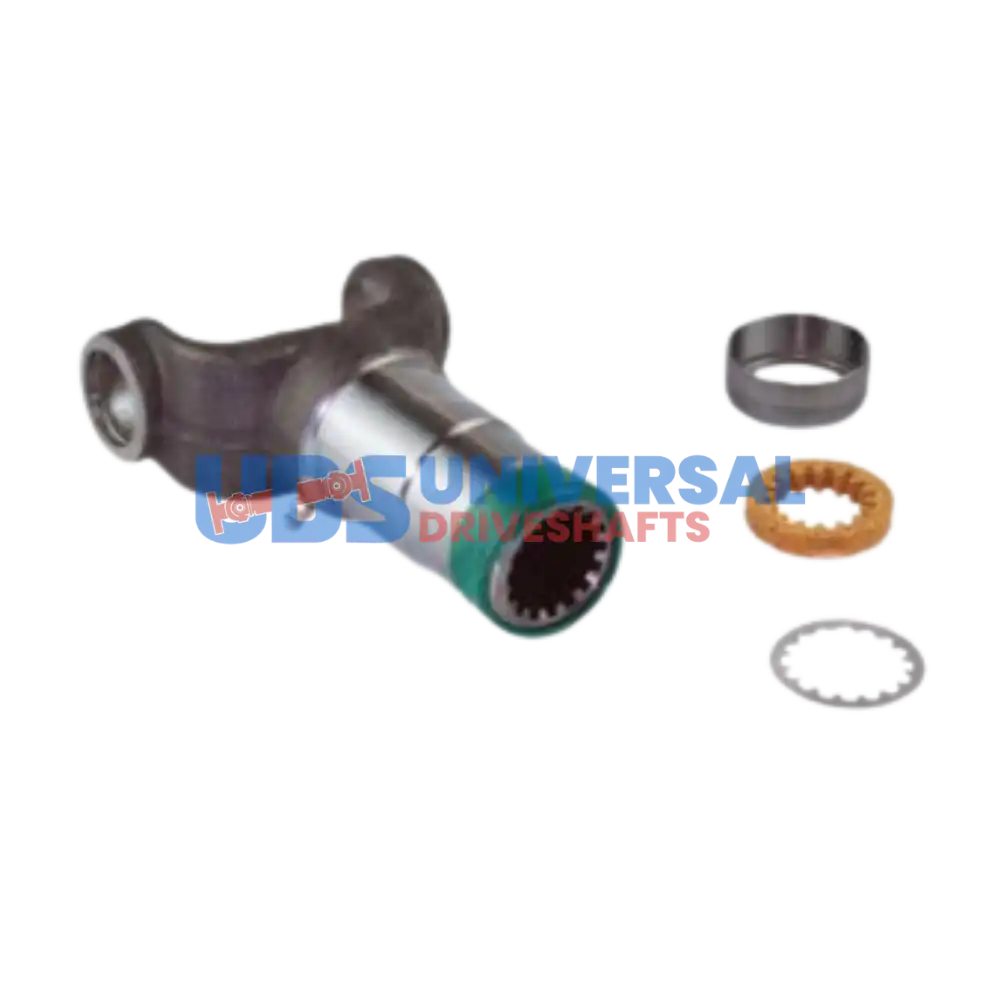

3-3-1481KX Slip Yoke 1410 series, Splines: 1.375×16 , Centerline To End 5.812 Inch
$59.89
14 in stock
10
People watching this product now!
Description
3-3-1481KX 1410 series slip yoke. 1.375 in x 16 spline, 5.812 in center U-joint to end. Confirm stop shaft spline specs before ordering.
Full Description
3-3-1481KX 1410 Series Slip Yoke
The 3-3-1481KX is a 1410 series slip yoke with a 1.375-inch spline diameter and 16-spline count. The centerline-to-end dimension measures 5.812 inches, making this a shorter-engagement yoke suited for driveshaft configurations with limited working length. The splined bore engages the stop shaft on the front driveshaft section, allowing the assembly to change length through suspension travel.
Specifications
- Part Number: 3-3-1481KX
- Series: 1410
- Spline Diameter: 1.375 in
- Spline Count: 16
- Center U-Joint to End: 5.812 in
When fitting the 3-3-1481KX, confirm the stop shaft runs 1.375 inches at 16 splines. The 1410 series carries significantly higher torque capacity than 1310 or 1350, making it a common specification for heavy half-ton and three-quarter-ton truck driveshafts. Verify the 5.812-inch CJ-to-end length is compatible with the required engagement depth on your stop shaft.
The 3-3-1481KX should be matched with 1410 series U-joints and yokes throughout the driveshaft assembly. Cross-referencing against the mating stop shaft spline spec is essential before installation to prevent premature wear or disengagement under load.
Additional information
| Center u joint to end | 5.812 |
|---|---|
| Partn number | 3-3-1481KX |
| Series | 1410 |
| Splines count | 16 |
| Splines dia | 1.375 |
