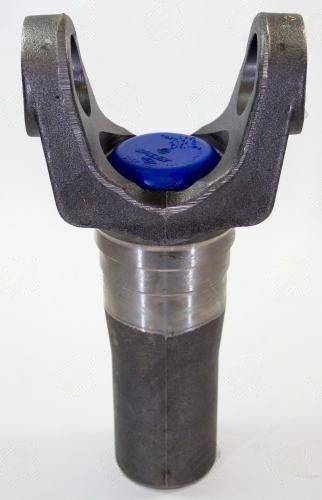

100-3-41X – Slip Yoke – SPL100, SPL90 Series – 1.965″ Splines Dia – Center U Joint To End 9.681
$229.11
+50 in stock
18
People watching this product now!
Description
100-3-41X UDS SPL100, SPL90 series slip yoke. Splines: 29.30, CJ-to-end: 9.681″. Verify stop shaft spline count and diameter before ordering.
Full Description
100-3-41X UDS SPL100, SPL90 Slip Yoke
The 100-3-41X is a SPL100, SPL90 series slip yoke manufactured by UDS. The slip yoke slides over the stop shaft — the splined stub welded onto the front section of the driveshaft tube — and telescopes in and out as the suspension cycles. This allows the driveshaft to change working length without binding.
The spline specification is 29.30; verify this matches the stop shaft before ordering. The centerline-to-end dimension is 9.681 inches, measured from the U-joint centerline to the open end of the spline bore. This controls minimum engagement depth under full suspension droop — ensure sufficient spline overlap remains at maximum driveshaft extension. Spicer. The SPL100, SPL90 series is designed for the specified application range.
Specifications
- Part Number: 100-3-41X
- Brand: UDS
- Series: SPL100, SPL90
- Center u joint to end: 9.681
- Notes: Spicer
- Splines count: 29.30
- Splines dia: 1.965
Fitment & Installation Notes
When selecting the 100-3-41X, verify the stop shaft spline count and diameter match the 29.30 specification. Inspect the stop shaft for wear or damage; a worn shaft will produce lash even with a new yoke.
View the full range of Slip Yoke in SPL100, SPL90 and adjacent series configurations.
Additional information
| Center u joint to end | 9.681 |
|---|---|
| Notes | Spicer |
| Partn number | 100-3-41X |
| Series | SPL100, SPL90 |
| Splines count | 29.30 |
| Splines dia | 1.965 |
