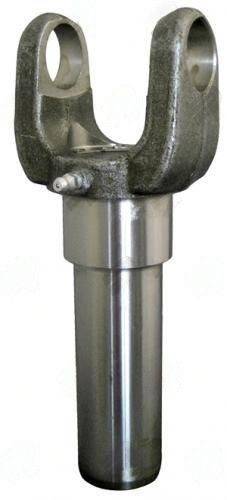

1303-20 – Slip Yoke – 1.310″ Splines Dia – 20 Splines – Center U Joint To End 7.500

Spline geometry is the defining characteristic of a slip yoke, and the 1303-20 is precisely machined to 20-spline, 1.310" specifications for the 1351-20 series driveshaft. Correct spline engagement ensures full torque transfer with minimal backlash throughout the operating range.

Spline Engineering

Involute spline profiles, standard in automotive drivelines, distribute torque across all spline teeth simultaneously. The 20 teeth of the 1303-20 provide adequate torque capacity for 1351-20 series loads while maintaining sufficient tooth thickness for long service life. Spline diameter of 1.310" is the pitch diameter reference -- verify this matches your transmission shaft specification before ordering.

Dimensional Data

Sliding Surface and Seal Considerations

The portion of the 1303-20 that slides through the transmission extension housing seal must be ground to a smooth, consistent finish. Surface roughness above Ra 32 will cut through the seal lip prematurely, resulting in fluid loss. Universal Driveshafts sources slip yokes with controlled surface finish on the seal contact area to prevent this failure mode.

Maintenance and Inspection

• Inspect the yoke sliding surface for grooves, pitting, or corrosion at each driveshaft service
• Light surface rust can be polished away; deep scoring requires replacement
• Check spline condition: tooth flanks should show even contact, no brinneling
• Verify the companion U-joint cross and snap rings are also in serviceable condition
• Apply a thin coat of lithium grease to splines before reassembly

Ordering

The 1303-20 is a stocking item at Universal Driveshafts. We carry the full 1351-20 series lineup -- matching crosses, yokes, and flanges. Call or email our driveline team with your vehicle details for confirmation before ordering.
