PTO End Yokes

More categories:

Show sidebar
Show 9 12 18 24
Sort by Price low to high
Series
Bore type
Bore dia
Hub dia
Brand
Filters/Search
Filters Sort results
Reset Apply
Add
Part number
Series
Bore Dia
Bore Type
Cj To End
Hub Dia
Keyway
Through hole
Notes

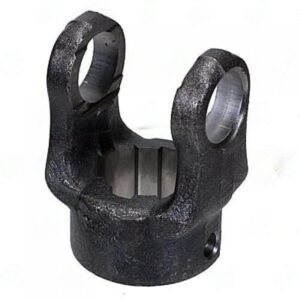

10-4-0103 PTO end yoke
$13.15
Max:
Min: 1
Step: 1
Add to cart
10-4-193
1000
1.250
round
2.50
2.000
0.312
1.20

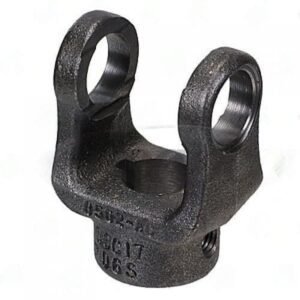

10-4-373 end yoke
$16.69
Max:
Min: 1
Step: 1
Add to cart
10-4-373
1000
938
round
2.50
1.62
GAP - 0.25
1.20

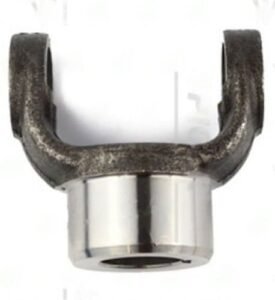

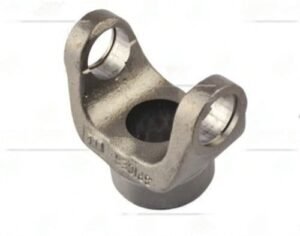

2-4-573 PTO end yoke
$16.76
Max:
Min: 1
Step: 1
Add to cart
2-4-573
1310
1.250
round
2.56
2.00
EAR-0.25
1.62

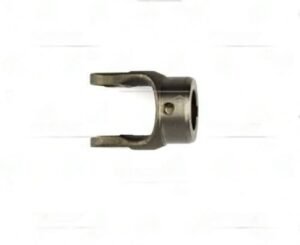

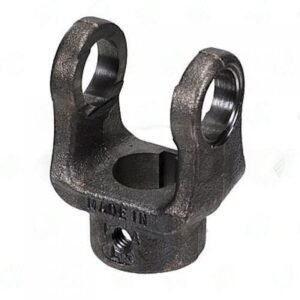

10-0493 PTO end yoke
$17.99
Max:
Min: 1
Step: 1
Add to cart
10-0493
1000
1.000
round
2.50
1.62
GAP - 0.25
1.20

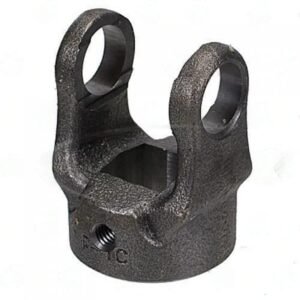

10-4-0143 PTO end yoke
$18.63
Max:
Min: 1
Step: 1
Add to cart
10-4-0143
1000
1.125
round
2.50
2.25
GAP - 0.25
1.20

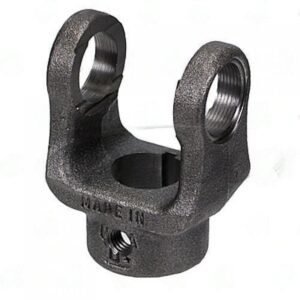

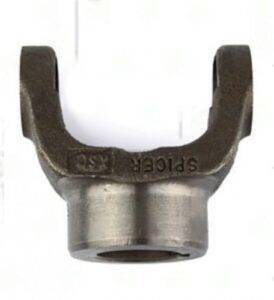

2-4-533 PTO end yoke
$19.22
Max:
Min: 1
Step: 1
Add to cart
2-4-533
1310
1.250
round
2.56
2.00
EAR-0.31
1.62

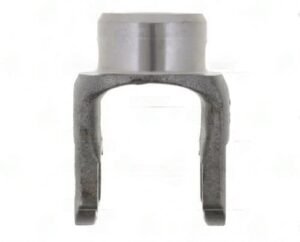

2-4-503 PTO end yoke
$22.00
Max:
Min: 1
Step: 1
Add to cart
2-4-503
1310
1.125
round
2.56
2.00
EAR-0.25
1.62

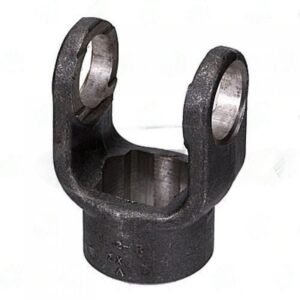

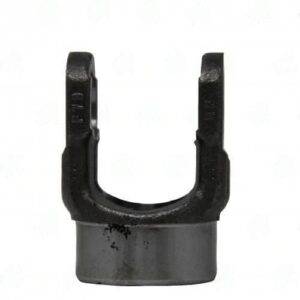

10-4-0183 PTO end yoke
$22.14
Max:
Min: 1
Step: 1
Add to cart
10-4-0183
1000
1.250
round
2.50
2.25
GAP - 0.25
1.19

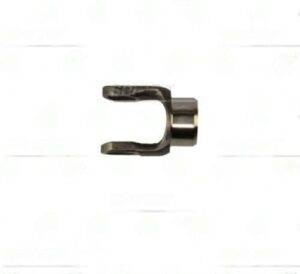

10-4-0481 PTO end yoke
$22.70
Max:
Min: 1
Step: 1
Add to cart
10-4-0481
1000
0.875-13
splined
2.50
1.625
0
1.220

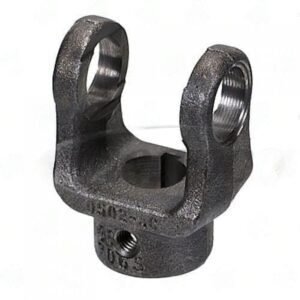

10-0463 PTO end yoke
$25.79
Max:
Min: 1
Step: 1
Add to cart
10-0463
1000
875
round
2.50
1.62
GAP - 0.25
1.24

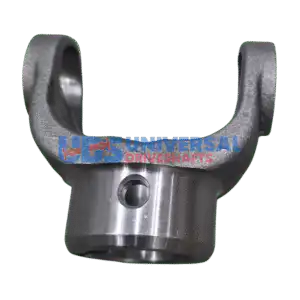

2-4-1103 end yoke
$25.37
Max:
Min: 1
Step: 1
Add to cart
2-4-1103
1310
1.375
round
2.56
2.00
EAR-0.31
1.375

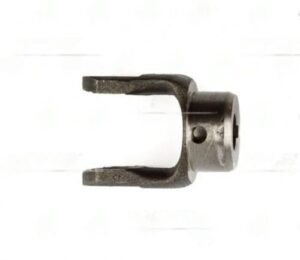

10-4-23 PTO end yoke
$25.42
Max:
Min: 1
Step: 1
Add to cart
10-4-23
1000
750
round
2.50
1.62
GAP - 0.25
1.27

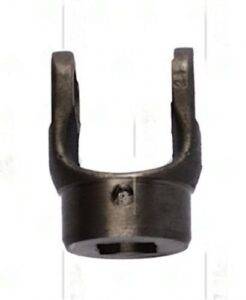

10-4-12 PTO end yoke
$27.07
Max:
Min: 1
Step: 1
Add to cart
10-4-12
1000
875
square
2.50
1.62
0
1.225

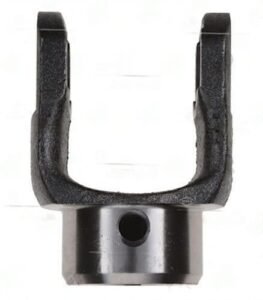

10-4-13 PTO end yoke
$29.42
Max:
Min: 1
Step: 1
Add to cart
10-4-13
1000
750
round
2.50
1.62
GAP-0.19
1.20

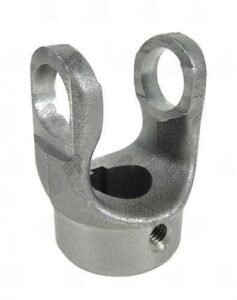

10-4-0103 PTO end yoke
$29.48
Max:
Min: 1
Step: 1
Add to cart
10-4-0103
1000
1.125
round
2.50
2.25
GAP - 0.25
1.20

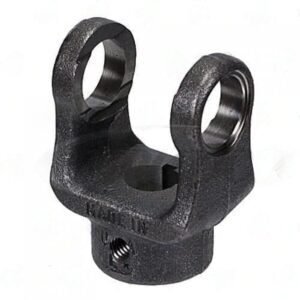

10-0413 PTO end yoke
$32.97
Max:
Min: 1
Step: 1
Add to cart
10-0413
1000
750
round
2.500
1.62
GAP-0.19
1.20

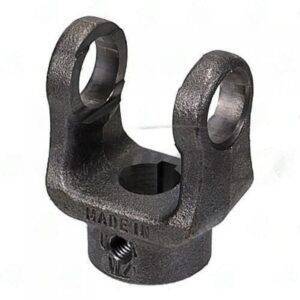

10-0443 PTO end yoke
$33.10
Max:
Min: 1
Step: 1
Add to cart
10-0443
1000
round
2.500
1.62
1.225

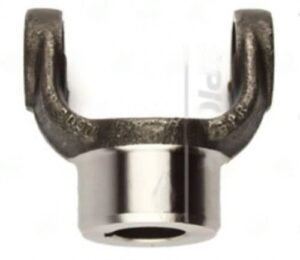

2-4-473 PTO end yoke
$33.10
Max:
Min: 1
Step: 1
Add to cart
2-4-473
1310
1.000
round
2.56
2.00
EAR-0.25
1.62
10-0452 PTO end yoke
$33.14
Max:
Min: 1
Step: 1
Add to cart
10-0452
1000
1.000
aquare
2.500
2.25
0
1.24
10-0423 PTO end yoke
$34.29
Max:
Min: 1
Step: 1
Add to cart
10-0423
1000
750
round
2.500
1.62
GAP-0.25
1.27
Category Information

PTO (Power Take-Off) end yokes connect the driveshaft to the power take-off shaft on tractors, implements, and industrial equipment. PTO shafts rotate at standardized speeds (540 RPM and 1000 RPM are the most common in agricultural applications), and the yoke must be matched to both the correct series U-joint and the correct bore or spline profile for the PTO shaft being used.

PTO Yoke Selection

Series — 1000 series (small agricultural equipment), 1310 series (medium-duty trucks and heavier implements). Series determines U-joint cap bore diameter and snap ring groove geometry.
Bore diameter and keyway — PTO shafts are typically either smooth bore (retained by a roll pin or key) or splined. Bore ID must match the PTO shaft OD exactly.
Snap ring style — ISR or OSR, matching the yoke bore machining on your implement or shaft end.

Universal Driveshafts carries PTO end yokes for the most common agricultural PTO shaft sizes in both 1000 and 1310 series. Listings include bore diameter and key or spline information. If your application requires a special bore size or spline profile, contact our parts team — we can often source or manufacture to specification for non-standard PTO configurations.
