10-4-13 – End Yoke – 1000 Series – 1.62″ Hub Dia – Bore Dia 750

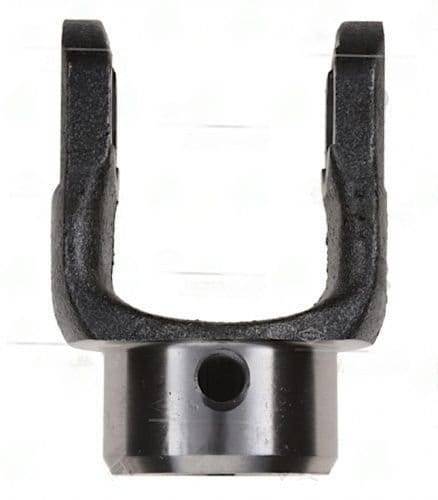

10-4-13 1000 Series PTO End Yoke

The 10-4-13 is a 1000 series PTO end yoke with a round bore. The bore diameter is 0.750" with a hub diameter of 1.62". The keyway gap is 0.19", and the CJ-to-end dimension is 2.50". Through hole diameter is 1.20".

Specifications

• Part Number: 10-4-13
• Series: 1000
• Bore Type: Round
• Bore Diameter: 0.750"
• Hub Diameter: 1.62"
• Keyway: GAP-0.19
• CJ to End: 2.50"
• Through Hole: 1.20"

When fitting the 10-4-13, confirm the 0.750" bore diameter against the PTO shaft OD and verify the 0.19" keyway gap against the key stock on the shaft. The 1.62" hub diameter determines the shoulder contact surface — ensure it seats cleanly.

The 10-4-13 shares the same 1000 series geometry with a 2.50" CJ-to-end measurement, consistent with standard agricultural and light industrial PTO applications. The round bore with 0.19" keyway is a common configuration on smaller PTO shafts; verify both dimensions before ordering.
