10-4-12 – End Yoke – 1000 Series – 1.62″ Hub Dia – Bore Dia 875

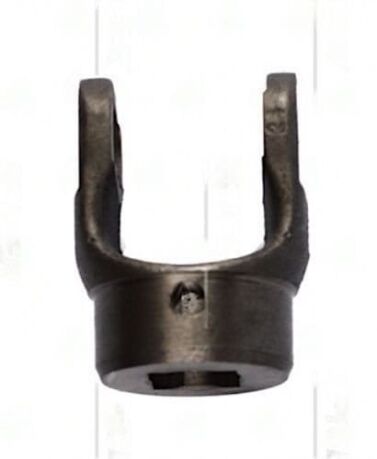

10-4-12 1000 Series PTO End Yoke

The 10-4-12 is a 1000 series PTO end yoke with a square bore configuration. The bore diameter measures 0.875" with a hub diameter of 1.62". This yoke has no keyway (keyway value: 0), and the CJ-to-end dimension is 2.50". Through hole diameter is 1.225".

Specifications

• Part Number: 10-4-12
• Series: 1000
• Bore Type: Square
• Bore Diameter: 0.875"
• Hub Diameter: 1.62"
• Keyway: None
• CJ to End: 2.50"
• Through Hole: 1.225"

When fitting the 10-4-12, the square bore interface requires the PTO shaft to have a matching square profile at 0.875". There is no keyway — torque transmission is achieved entirely through the square bore geometry. Confirm the shaft measures 0.875" across flats before ordering.

Square bore PTO yokes like the 10-4-12 are common on European tractor PTO shafts and certain implement gearboxes. The 1000 series with a 2.50" CJ-to-end is a standard geometry. Verify the 0.875" square bore dimension precisely, as square bore yokes are not interchangeable with round or splined configurations.
