10-4-373 PTO YOKE End Yoke – 1000 series, Bore: 0.625 , Keyway : 0.188 , Hub: 1.625
$17.61
+50 in stock
15
People watching this product now!
Description
10-4-373 1000 series PTO end yoke, round bore 0.938″, hub diameter 1.62″, keyway GAP 0.25″, CJ-to-end 2.50″.
Full Description

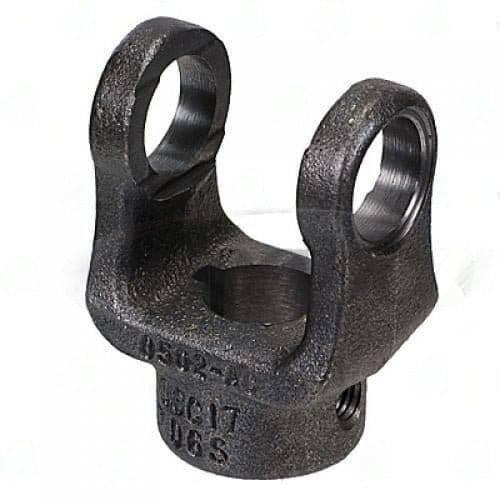

10-4-373 1000 Series PTO End Yoke
The 10-4-373 is a 1000 series PTO end yoke with a round bore. The bore diameter is listed as 0.938" with a hub diameter of 1.62". The keyway gap is 0.25", and the CJ-to-end dimension is 2.50". Through hole diameter is 1.20".
Specifications
- Part Number: 10-4-373
- Series: 1000
- Bore Type: Round
- Bore Diameter: 0.938"
- Hub Diameter: 1.62"
- Keyway: GAP - 0.25
- CJ to End: 2.50"
- Through Hole: 1.20"
When fitting the 10-4-373, verify the 0.938" round bore against the PTO shaft OD and confirm the 0.25" keyway gap matches the key stock. This yoke appears in both the End Yokes and PTO End Yokes categories. The 0.938" bore is nominally a 15/16" bore commonly found on lighter agricultural PTO shafts.
The 10-4-373 uses the standard 1000 series geometry with a 2.50" CJ-to-end and 1.62" hub diameter. The product listing references a 0.625" bore and 0.188" keyway in the title; rely on the attribute data (0.938" bore, 0.25" keyway) as the definitive specification. Measure the shaft OD directly before ordering.
Additional information
| Bore type | round |
|---|---|
| Cj to end | 2.50 |
| Hub dia | 1.62 |
| Keyway | GAP – 0.25 |
| Series | 1000 |
| Through hole | 1.20 |
| Bore dia | 938 |
