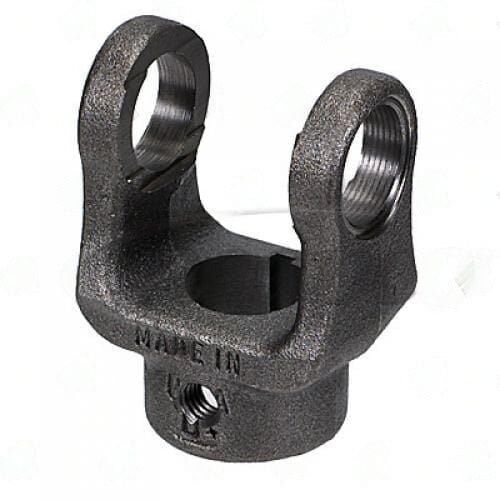

10-0483 – End Yoke – 1000 Series – 1.000″ Bore Dia – 1.62″ Hub Dia

10-0483 1000 Series PTO End Yoke

The 10-0483 is a 1000 series PTO end yoke with a round bore. The bore diameter measures 1.000" with a hub diameter of 1.62". The keyway gap is 0.19", and the CJ-to-end dimension is 2.50". Through hole diameter is 1.20".

Specifications

• Part Number: 10-0483
• Series: 1000
• Bore Type: Round
• Bore Diameter: 1.000"
• Hub Diameter: 1.62"
• Keyway: GAP-0.19
• CJ to End: 2.50"
• Through Hole: 1.20"

When fitting the 10-0483, verify the 1.000" round bore against the PTO shaft OD and confirm the 0.19" keyway gap matches the key stock. The keyway gap on the 10-0483 (0.19") is narrower than the 0.25" gap on the 10-0493, which shares the same bore and hub dimensions — these are not interchangeable if the shaft key is cut to 0.25".

The 10-0483 suits 1.000" round bore PTO shafts with a 3/16" key (0.188"–0.19" nominal). The 1.62" hub and 2.50" CJ-to-end place this yoke in the standard 1000 series geometry. Measure the key width on the shaft to determine whether the 10-0483 or 10-0493 is the correct selection.
