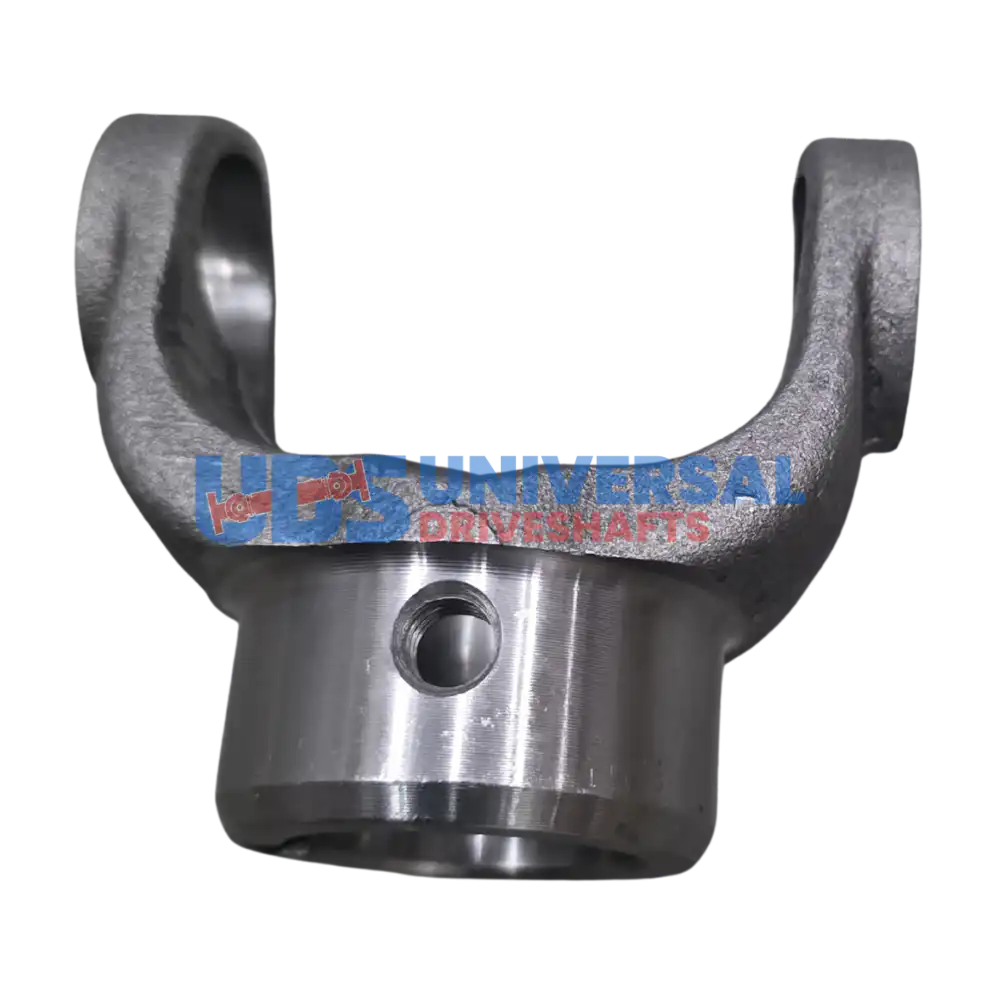

2-4-1103 End Yoke 1310 -Round Bore, Bore: 1.375 ,Keyway 0.312, Hub: 2.000 diameter
$26.76
+50 in stock
17
People watching this product now!
Description
2-4-1103 1310 series PTO end yoke, round bore 1.375″ with ear keyway 0.31″, hub 2.00″, CJ-to-end 2.56″. Verify bore diameter and keyway style against PTO shaft before ordering.
Full Description
2-4-1103 1310 Series PTO End Yoke Round Bore with Keyway
The 2-4-1103 is a 1310 series PTO end yoke with a round bore. Bore diameter is 1.375" with an ear keyway of 0.31", and the hub diameter is 2.00". The CJ-to-end dimension is 2.56" and the through-hole is 1.375".
Specifications
- Part Number: 2-4-1103
- Series: 1310
- Bore Type: Round
- Bore Diameter: 1.375"
- Keyway: EAR-0.31"
- Hub Diameter: 2.00"
- CJ to End: 2.56"
- Through Hole: 1.375"
When fitting the 2-4-1103, confirm the PTO shaft OD is 1.375" and that the keyway is an ear-style 0.31" cut. The 2.56" CJ-to-end measurement determines clearance at the U-joint interface; compare this figure against the mating yoke and joint assembly to ensure adequate working space.
The 1310 series is a common light-to-medium duty driveline series found on agricultural and industrial PTO applications. The 2-4-1103 shares a 2.00" hub diameter with companion yokes in this bore range; mismatched hub diameter can result in yoke imbalance under PTO shaft rotation. Verify the keyway type — ear-style cuts differ from standard inline keyways and require the correct key stock at installation.
Additional information
| Bore type | round |
|---|---|
| Cj to end | 2.56 |
| Hub dia | 2.00 |
| Keyway | EAR-0.31 |
| Partn number | 2-4-1103 |
| Series | 1310 |
| Through hole | 1.375 |
| Bore dia | 1.375 |
