10-4-193 End Yoke – Round Bore 1000 series, Bore : 1.250 With Keyway: 0.312 , Hub: 2.000

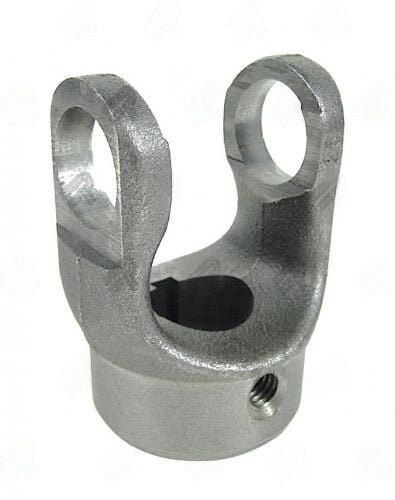

10-4-193 1000 Series PTO End Yoke Round Bore with Keyway

The 10-4-193 is a 1000 series PTO end yoke with a round bore configuration. The bore diameter is 1.250" with a 0.312" keyway, and the hub diameter is 2.000". The centerline-to-end (CJ-to-end) dimension is 2.50", and the through-hole measures 1.20".

Specifications

• Part Number: 10-4-193
• Series: 1000
• Bore Type: Round
• Bore Diameter: 1.250"
• Keyway: 0.312"
• Hub Diameter: 2.000"
• CJ to End: 2.50"
• Through Hole: 1.20"

When installing the 10-4-193, the 1.250" round bore and 0.312" keyway must match the shaft dimensions precisely — measure your PTO shaft OD and key stock before ordering. The 2.50" CJ-to-end figure determines U-joint working clearance; cross-reference this with your driveline geometry before finalizing installation.

The 1000 series is a light-duty agricultural PTO rating. The 10-4-193 carries a 2.000" hub diameter and 1.20" through-hole; confirm these dimensions against your companion shaft and any retaining hardware. Mismatched keyway width will prevent full seating and can cause fretting at the bore interface under load.
