SA1510-L 1510 Series – Super Duty Splines 1.750×16 Long Travel Butt Dia: 70mm
$200.45
7 in stock
12
People watching this product now!
Description
SA1510-L UDS 1510 Series Super Duty splined slip assembly. 16 splines x 1.7500″ diameter, butt dia 2.440″, fits tube 2.560×0.065, weld-to-centerline 16.250″. Verify spline count and diameter before assembly.
Full Description

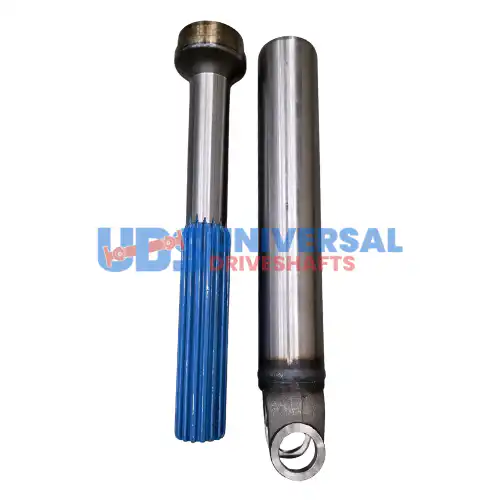

SA1510-L UDS 1510 Series Super Duty Splined Slip Assembly
The SA1510-L is a 1510 series splined slip assembly manufactured by UDS. It runs 16 splines at a 1.7500" diameter and is machined for long-travel applications, with a weld-to-centerline dimension of 16.250" — a figure that must be accounted for when planning driveshaft geometry. The butt diameter is 2.440" and the tube fit is 2.560x0.065 wall.
Specifications
- Part Number: SA1510-L
- Brand: UDS
- Series: 1510
- Splines Count: 16
- Splines Diameter: 1.7500"
- Butt Diameter: 2.440"
- Fits Tube: 2.560 x 0.065 wall
- Material: Steel
- Weld To Centerline: 16.250"
- Style: Super Duty Splines
When fitting the SA1510-L, verify the mating stop shaft carries a matching 16-spline, 1.7500" diameter profile before assembly. The 2.440" butt diameter must be confirmed against your tube bore — the intended tube spec is 2.560 OD x 0.065 wall, leaving standard interference for weld prep.
The 1510 series sits above the 1410 in torque capacity and is commonly found in medium-to-heavy truck applications requiring greater angularity tolerance. The SA1510-L long-travel designation is defined by the 16.250" weld-to-centerline measurement; confirm overall driveshaft working length against this dimension before cutting tube stock.
Additional information
| Series | 1510 |
|---|---|
| Splines count | 16 |
| Splines dia | 1.7500 |
| Butt dia | 2.440 |
| Fits to tube | 2.560×0.065 |
| Material | STEEL |
| Brand | UDS |
| Notes | Weld To Centerline: 16.250 – Super Duty splines |
