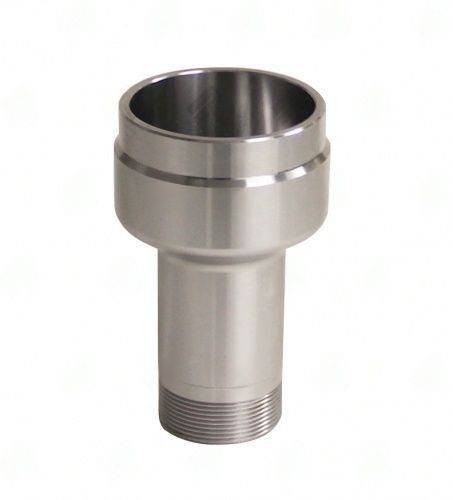

2133-27 – Splined Sleeves & Slip Assemblies – 1.198″ Splines Dia – 27 Splines – Butt Dia 2.375
$48.50
Available on backorder
12
People watching this product now!
Description
2133-27 UDS splined midship shaft. Splines 1.198, fits tube, ” bearing journal. Verify slip yoke splines match before assembly.
Full Description
2133-27 UDS Splined Midship Tube Shaft
The 2133-27 is a splined midship tube shaft manufactured by UDS. In a two-piece driveshaft assembly, the midship shaft occupies the center section: one end carries the splined bore that accepts a slip yoke, and the other end connects to a U-joint. The shaft is welded into a driveshaft tube.
The spline specification is 1.198 — the slip yoke that slides onto this shaft must have an identical spline count and diameter. The shaft is designed to fit inside a tube with a butt diameter of 2.375 inches at the weld joint. The end-to-weld dimension is 3.665 inches.
Specifications
- Part Number: 2133-27
- Brand: UDS
- Series: BMW & MORE
- Butt dia: 2.375
- End to weld: 3.665
- Material: STEEL
- Splines count: 27
- Splines dia: 1.198
Fitment & Installation Notes
Verify the slip yoke splines match the 1.198 specification on the 2133-27 before assembly. The tube OD must be to accept this shaft correctly. If replacing a worn midship shaft, inspect the center support bearing simultaneously.
Browse related Slip Assemblies for two-piece driveshaft applications.
Additional information
| Butt dia | 2.375 |
|---|---|
| End to weld | 3.665 |
| Material | STEEL |
| Partn number | 2133-27 |
| Series | BMW & MORE |
| Splines count | 27 |
| Splines dia | 1.198 |
