2-55-278X – Splined Sleeves & Slip Assemblies – 1330 Series – 3.002″ Splines Dia – Butt Dia 3.854
$159.19
1 in stock
20 People watching this product now!
Description
2-55-278X UDS splined midship shaft. Splines 3.002, fits tube, ” bearing journal. Verify slip yoke splines match before assembly.
Full Description

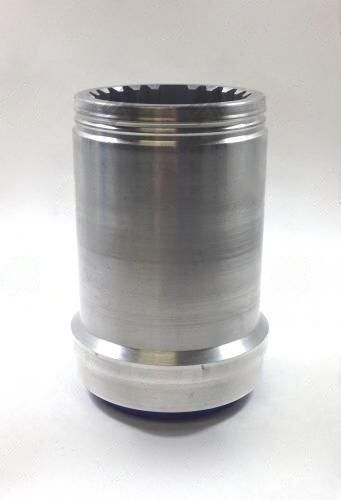

2-55-278X UDS Splined Midship Tube Shaft
The 2-55-278X is a splined midship tube shaft manufactured by UDS. In a two-piece driveshaft assembly, the midship shaft occupies the center section: one end carries the splined bore that accepts a slip yoke, and the other end connects to a U-joint. The shaft is welded into a driveshaft tube.
The spline specification is 3.002 — the slip yoke that slides onto this shaft must have an identical spline count and diameter. The shaft is designed to fit inside a tube with a butt diameter of 3.854 inches at the weld joint. The end-to-weld dimension is 4.910 inches.
Specifications
- Part Number: 2-55-278X
- Brand: UDS
- Series: 1330
- Butt dia: 3.854
- End to weld: 4.910
- Fits to tube: 4.00x0.083
- Material: ALUMINUM
- Splines count: 22/23
- Splines dia: 3.002
Fitment & Installation Notes
Verify the slip yoke splines match the 3.002 specification on the 2-55-278X before assembly. The tube OD must be to accept this shaft correctly. If replacing a worn midship shaft, inspect the center support bearing simultaneously.
Browse related Slip Assemblies for two-piece driveshaft applications.
Additional information
| Butt dia | 3.854 |
|---|---|
| End to weld | 4.910 |
| Fits to tube | 4.00×0.083 |
| Material | ALUMINUM |
| Partn number | 2-55-278X |
| Series | 1330 |
| Splines count | 22/23 |
| Splines dia | 3.002 |
