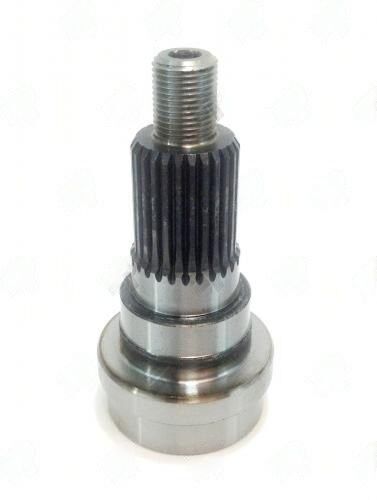

1253-262 – Stub Midship Shaft – Bearing Dia 1.181″ – Butt Dia 1.875″ – End To Weld 2.875
$59.95
2 in stock
Description
1253-262 fixed stub midship shaft. Bearing dia 1.181″, butt dia 1.875″, end-to-weld 2.875″. 26×1.115 spline. Use with 1204-261. Requires 858018 nut — do not substitute.
Full Description
1253-262 Fixed Stub Midship Shaft
Spline specification: 26 teeth at 1.115" pitch diameter, spline length 1.180". The end-to-weld of only 2.875" makes this a compact stub -- verify clearance in your tunnel before assembly.
Required companion parts:
- Midship assembly: 1204-261
- Nut: 858018 (do not substitute -- thread pitch and torque spec are specific to this application)
| Spec | Value |
|---|---|
| Style | Fixed |
| Bearing Dia | 1.181" |
| Butt Dia | 1.875" |
| End to Weld | 2.875" |
| Tube Dia | 2.000" |
| Tube Wall | 0.065" |
| Splines | 26 x 1.115" |
| Spline Length | 1.180" |
The 2.000" tube diameter and 0.065" wall is a lighter-duty specification. Confirm tube dimensions before welding. View all stub and midship shafts.
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 1.875 |
| End to weld | 2.875 |
| Notes | USE WITH: 1204-261 , Uses 858018 nut |
| Partn number | 1253-262 |
| Splines count dia | 26 x 1.115 |
| Splines length | 1.180 |
| Tube dia | 2.000 |
| Tube wall | 0.065″ |
| Style | FIXED |
