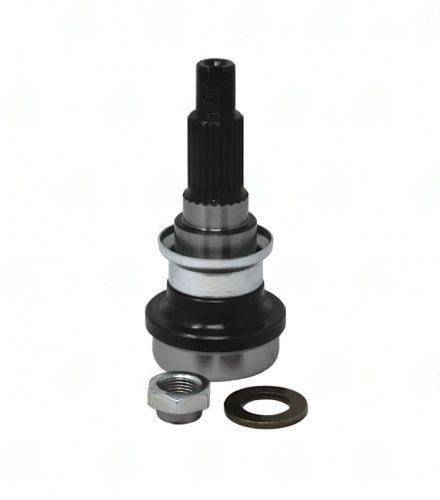

1353-232 – Stub Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.344″ – End To Weld 5.000
$60.63
1 in stock
14
People watching this product now!
Description
1353-232 stub midship shaft — fixed, Toyota. Bearing dia: 1.181″. Butt: 2.344″. Splines: 23 x 0.990″. End-to-weld: 5.000″. Tube: 2.500″ x 0.083″. Nut 1374-233 included.
Full Description
The 1353-232 is a fixed-style stub midship shaft designed for Toyota OE tube replacement. The catalog note confirms it is specifically matched to the Toyota OE tube specification and includes nut 1374-233 as part of the package. The inclusion of a specific nut indicates the shaft requires a locking retention nut at the spline end that is not standard hardware.
The 23-spline x 0.990" configuration is a Toyota-specific shaft spline interface. The 0.990" pitch diameter on 23 splines gives a coarser tooth that is suited to the torque levels of Toyota truck and SUV rear-wheel-drive applications. The 1.375" spline length provides adequate engagement for these applications.
| Specification | Value |
|---|---|
| Part Number | 1353-232 |
| Style | Fixed |
| Application | Toyota (OE Tube) |
| Bearing Diameter | 1.181" |
| Butt Diameter | 2.344" |
| Tube OD | 2.500" |
| Tube Wall | 0.083" |
| End-to-Weld | 5.000" |
| Spline | 23 x 0.990" |
| Spline Length | 1.375" |
| Includes | Nut 1374-233 |
For Toyota applications, the OE tube specification ensures the butt diameter and tube bore match the original tube without modification. If your tube has already been replaced with non-OE tubing, verify the actual bore matches the 2.344" butt before welding. The 1374-233 nut retains the shaft at the spline end - do not substitute an incorrect thread pitch or size for this nut.
View all stub and midship shafts.
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 2.344 |
| End to weld | 5.000 |
| Notes | Fits Toyota OE Tube / 1374-233 nut included, Use with: 1301-231 |
| Partn number | 1353-232 |
| Splines count dia | 23 X 0.990 |
| Splines length | 1.375 |
| Tube dia | 2.500 |
| Tube wall | 0.083″ |
| Style | FIXED |
