1253-261 – Stub Midship Shaft – 26 x 1.115 Splines – Butt Dia 2.375″ – Tube Dia Wall 2.500X0.065
$59.95
1 in stock
10
People watching this product now!
Description
1253-261 UDS splined midship shaft. Splines 26 x 1.115, fits 2.500 x 0.065″ tube, ” bearing journal. Verify slip yoke splines match before assembly.
Full Description

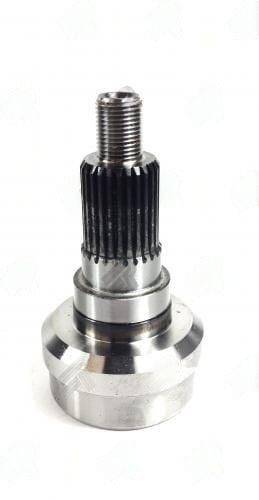

1253-261 UDS Splined Midship Tube Shaft
The 1253-261 is a splined midship tube shaft manufactured by UDS. In a two-piece driveshaft assembly, the midship shaft occupies the center section: one end carries the splined bore that accepts a slip yoke, and the other end connects to a U-joint. The shaft is welded into a driveshaft tube.
The spline specification is 26 x 1.115 — the slip yoke that slides onto this shaft must have an identical spline count and diameter. The shaft is designed to fit inside a 2.500 x 0.065" tube with a butt diameter of 2.375 inches at the weld joint. The end-to-weld dimension is 3.125 inches. Note: USE WITH: 1204-261 , Uses 858018 nut.
Specifications
- Part Number: 1253-261
- Brand: UDS
- Butt dia: 2.375
- End to weld: 3.125
- Notes: USE WITH: 1204-261 , Uses 858018 nut
- Splines count dia: 26 x 1.115
- Splines length: 1.120
- Tube dia: 2.500
- Tube wall: 0.065"
- Style: FIXED
Fitment & Installation Notes
Verify the slip yoke splines match the 26 x 1.115 specification on the 1253-261 before assembly. The tube OD must be 2.500 to accept this shaft correctly. If replacing a worn midship shaft, inspect the center support bearing simultaneously.
Browse related Stub & Midship Shafts for two-piece driveshaft applications.
Additional information
| Butt dia | 2.375 |
|---|---|
| End to weld | 3.125 |
| Notes | USE WITH: 1204-261 , Uses 858018 nut |
| Partn number | 1253-261 |
| Splines count dia | 26 x 1.115 |
| Splines length | 1.120 |
| Tube dia | 2.500 |
| Tube wall | 0.065″ |
| Style | FIXED |
