1340-20L – Stub Midship Shaft – 20 X 1.310 Splines – Butt Dia 2.435″ – Tube Dia Wall 2.560×0.065
$109.16
1 in stock
18
People watching this product now!
Description
1340-20L UDS splined midship shaft. Splines 20 X 1.310, fits 2.560 x 0.065″ tube, ” bearing journal. Verify slip yoke splines match before assembly.
Full Description

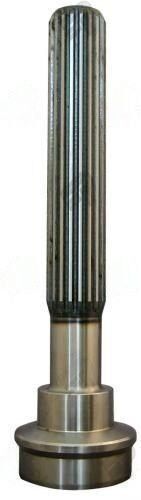

1340-20L UDS Splined Midship Tube Shaft
The 1340-20L is a splined midship tube shaft manufactured by UDS. In a two-piece driveshaft assembly, the midship shaft occupies the center section: one end carries the splined bore that accepts a slip yoke, and the other end connects to a U-joint. The shaft is welded into a driveshaft tube.
The spline specification is 20 X 1.310 — the slip yoke that slides onto this shaft must have an identical spline count and diameter. The shaft is designed to fit inside a 2.560 x 0.065" tube with a butt diameter of 2.435 inches at the weld joint. The end-to-weld dimension is 9.375 inches. Note: Toyota, Sold only in kit 1343-20L.
Specifications
- Part Number: 1340-20L
- Brand: UDS
- Butt dia: 2.435
- End to weld: 9.375
- Notes: Toyota, Sold only in kit 1343-20L
- Splines count dia: 20 X 1.310
- Splines length: 6.500
- Tube dia: 2.560
- Tube wall: 0.065"
- Style: Slip
Fitment & Installation Notes
Verify the slip yoke splines match the 20 X 1.310 specification on the 1340-20L before assembly. The tube OD must be 2.560 to accept this shaft correctly. If replacing a worn midship shaft, inspect the center support bearing simultaneously.
Browse related Stub & Midship Shafts for two-piece driveshaft applications.
Additional information
| Butt dia | 2.435 |
|---|---|
| End to weld | 9.375 |
| Notes | Toyota, Sold only in kit 1343-20L |
| Partn number | 1340-20L |
| Splines count dia | 20 X 1.310 |
| Splines length | 6.500 |
| Tube dia | 2.560 |
| Tube wall | 0.065″ |
| Style | Slip |
