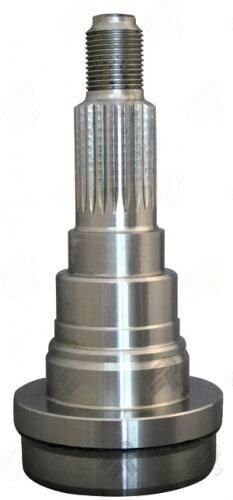

1353-231 – Stub Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.435″ – End To Weld 5.000
$75.56
1 in stock
12
People watching this product now!
Description
1353-231 UDS splined midship shaft. Splines 23 X 0.990, fits 2.560 x 0.065″ tube, 1.181″ bearing journal. Verify slip yoke splines match before assembly.
Full Description
1353-231 UDS Splined Midship Tube Shaft
The 1353-231 is a splined midship tube shaft manufactured by UDS. In a two-piece driveshaft assembly, the midship shaft occupies the center section: one end carries the splined bore that accepts a slip yoke, and the other end connects to a U-joint. The shaft is welded into a driveshaft tube.
The spline specification is 23 X 0.990 — the slip yoke that slides onto this shaft must have an identical spline count and diameter. The shaft is designed to fit inside a 2.560 x 0.065" tube with a butt diameter of 2.435 inches at the weld joint. The end-to-weld dimension is 5.000 inches. The 1.181-inch bearing journal accepts the center support bearing — verify the bearing inner bore matches this diameter. Note: Fits Toyota OE Tube / 1374-233 nut included, Use with: 1301-231.
Specifications
- Part Number: 1353-231
- Brand: UDS
- Bearing dia: 1.181
- Butt dia: 2.435
- End to weld: 5.000
- Notes: Fits Toyota OE Tube / 1374-233 nut included, Use with: 1301-231
- Splines count dia: 23 X 0.990
- Splines length: 1.375
- Tube dia: 2.560
- Tube wall: 0.065"
- Style: FIXED
Fitment & Installation Notes
Verify the slip yoke splines match the 23 X 0.990 specification on the 1353-231 before assembly. The tube OD must be 2.560 to accept this shaft correctly. If replacing a worn midship shaft, inspect the center support bearing simultaneously.
Browse related Stub & Midship Shafts for two-piece driveshaft applications.
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 2.435 |
| End to weld | 5.000 |
| Notes | Fits Toyota OE Tube / 1374-233 nut included, Use with: 1301-231 |
| Partn number | 1353-231 |
| Splines count dia | 23 X 0.990 |
| Splines length | 1.375 |
| Tube dia | 2.560 |
| Tube wall | 0.065″ |
| Style | FIXED |
