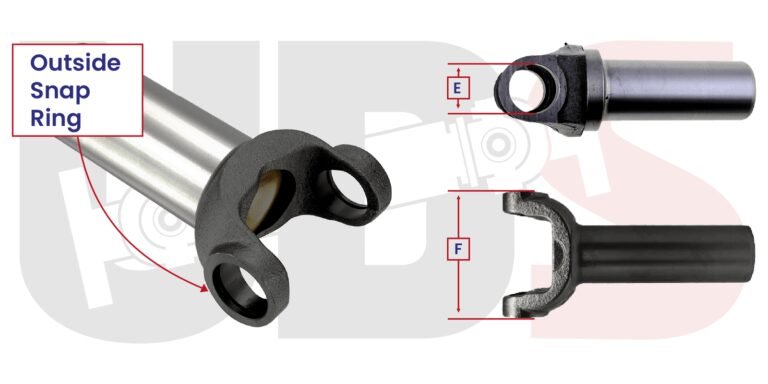

E.) Cap Diameter:
Diameter measured over bearing cap space.
F.) Width:
Distance measured over compressed bearing cap.
Let Us Help You Find the Right Part
Fill out the form below and we will contact you with the right fit part number.
Common Outside Snap Ring U-joint Sizes and series
| Series | Width | Cap Diameter |
|---|---|---|
| 1210 | 2 7/16″ = 2.438 | 1 1/16″ = 1.063 |
| 1310 | 3 7/32″ = 3.219 | 1 1/16″ = 1.063 |
| 1310 FORD* | 3 7/32″ = 3.219 | 1 1/8″ = 1.125 |
| 1330 | 3 5/8″ = 3.625 | 1 1/16″ = 1.063 |
| 1330 FORD* | 3 5/8″ = 3.625 | 1 1/8″ = 1.125 |
| 1350 | 3 5/8″ = 3.625 | 1 1/16″ = 1.063 |
| 1410 | 4 3/16 = 4.188 | 1 3/16″ = 1.188 |
| 1415** | 4.178 | 1 3/16″ = 1.188 |
| 1480 | 4 3/16 = 4.188 | 1 3/8″ = 1.375 |
| 1485** | 4.178 | 1 3/8″ = 1.375 |
| 1550 | 4 31/32″ = 4.969 | 1 3/8″ = 1.375 |
| 1555** | 4.9464 | 1 3/8″ = 1.375 |
