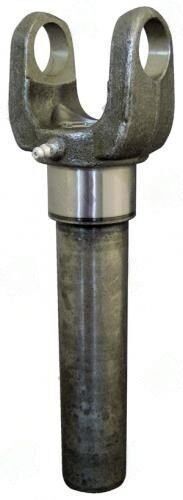

1303-20L – Slip Yoke – 1.310″ Splines Dia – 20 Splines – Center U Joint To End 9.875
$147.17
0 in stock
Description
1303-20L slip yoke, 1351-20 series, 20 splines at 1.310″ bore diameter, 9.875″ center-to-end. Direct replacement for transmission output shaft interface.
Full Description
Built for Toyota truck/Land Cruiser This part is only sold in Kit 1343-20L, the 1303-20L slip yoke provides the axial compliance your driveline needs to accommodate suspension movement without vibration or binding. This 1351-20 series unit carries 20 splines at 1.310" diameter for a precise, rattle-free fit on the transmission output shaft.
Product Description
Slip yoke replacement is often overlooked during driveshaft service, yet a worn yoke is frequently the root cause of vibration complaints that return after U-joint replacement. The 1303-20L restores the correct spline-to-bore clearance and presents an undamaged sliding surface to the extension housing seal, eliminating leak paths that develop with worn OEM yokes.
Part Details
| Detail | Specification |
|---|---|
| SKU | 1303-20L |
| Driveshaft Series | 1351-20 |
| Spline Count | 20 |
| Spline Bore Dia. | 1.310" |
| U-Joint Center to Yoke End | 9.875" |
| Fitment Notes | Toyota truck/Land Cruiser This part is only sold in Kit 1343-20L |
Series Compatibility
The 1351-20 series U-joint cross bores must match the yoke ear dimensions of the 1303-20L. Do not mix series -- a 1351-20 slip yoke should be paired only with a 1351-20 or compatible-series cross and companion yoke. Mismatched series results in incorrect snap ring grooves and potential joint separation under load.
Replacement Guidance
- Confirm 20-tooth count and 1.310" diameter match your transmission output shaft
- Measure center-to-end dimension if your application has tight length constraints
- Use assembly lube on splines during installation
- Reinstall transmission extension seal if it shows any sign of wear
- Phasing: reinstall driveshaft in the original orientation (mark before removal)
Why Universal Driveshafts
We specialize in driveline components across all series and vehicle types. The 1303-20L is part of our standard inventory -- no waiting on special orders. Our team can cross-reference by vehicle year/make/model or by direct measurement to confirm the right part every time.
Not sure which slip yoke you need? Our transmission slip yoke guide covers spline counts, styles, and how to measure.
Additional information
| Center u joint to end | 9.875 |
|---|---|
| Notes | Toyota truck/Land Cruiser This part is only sold in Kit 1343-20L |
| Partn number | 1303-20L |
| Series | 1351-20 |
| Splines count | 20 |
| Splines dia | 1.310 |
