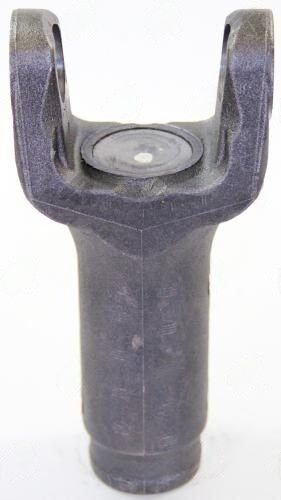

2-3-15101X – Slip Yoke – 1.338″ Splines Dia – 1310 Series – Center U Joint To End 6.724
$75.88
+50 in stock
Description
2-3-15101X slip yoke, 1310 series, 18/20 splines at 1.338″ bore diameter, 6.724″ center-to-end. Direct replacement for transmission output shaft interface.
Full Description
Getting the right slip yoke requires verifying both spline profile and U-joint series before installation. The 2-3-15101X is a 1310 series slip yoke with 18/20 splines and 1.338" bore diameter, designed for dust cap 211121X and compatible with standard 1310 series U-joint crosses and yokes.
Fitment Verification Guide
Before ordering a slip yoke, gather three measurements from the existing unit or your transmission shaft: spline tooth count, pitch diameter, and the center-of-U-joint to yoke-end distance. For the 2-3-15101X, those values are 18/20 teeth, 1.338" diameter, and 6.724" center-to-end. A mismatch on any of these dimensions means this is not the correct part for your application.
Specifications Table
| Measurement | Value |
|---|---|
| SKU | 2-3-15101X |
| Series | 1310 |
| Number of Splines | 18/20 |
| Spline Pitch Diameter | 1.338" |
| Center U-Joint to End | 6.724" |
| Application | dust cap 211121X |
Material and Construction
Slip yokes must handle both torsional and bending loads at the U-joint cross. The 2-3-15101X is forged from medium-carbon alloy steel and heat-treated to balance hardness with toughness. Yoke ears are machined to close tolerance for the 1310 series bearing cup diameter, ensuring the U-joint cross seats without rocking in the bores.
Installation Notes
- Clean and inspect the transmission output shaft splines for deformation before installation
- Slide the 2-3-15101X onto the output shaft and confirm it moves freely with only slight resistance
- Insert the U-joint cross into the yoke ears; verify bearing cups seat flush
- Install snap rings; confirm each ring snaps into its groove completely
- Check phasing of front and rear U-joints -- they must be in phase for smooth operation
Parts and Support
Universal Driveshafts carries 1310 series slip yokes, companion yokes, crosses, and complete driveshaft assemblies. The 2-3-15101X is in stock for fast delivery. Use our live chat or call us to confirm fitment with your vehicle data.
Not sure which slip yoke you need? Our transmission slip yoke guide covers spline counts, styles, and how to measure.
Additional information
| Center u joint to end | 6.724 |
|---|---|
| Notes | dust cap 211121X |
| Partn number | 2-3-15101x |
| Series | 1310 |
| Splines count | 18/20 |
| Splines dia | 1.338 |
