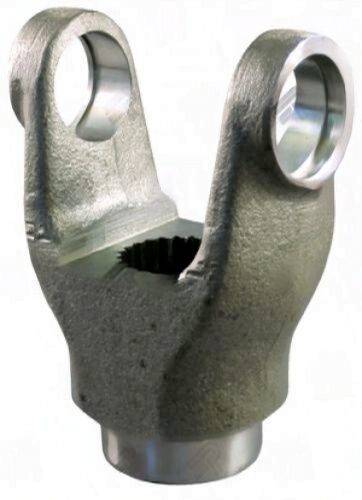

1404-22 – End Yoke – 1100 Series – 0.990″ Splines Dia – 1.420″ Hub Dia
$117.68
1 in stock
11 People watching this product now!
Description
1404-22 End Yoke — 1100 series, 0.990″ x 22/23 spline | 1.420″” hub dia | 2.750″” CJ-to-end | 1.360″ bore. Complete replacement, spline-specific fit. Count splines before ordering.
Full Description
End yoke failures are usually easy to diagnose: cracked ears, worn splines, or corrosion at the cap bores. Whatever the cause, the 1404-22 end yoke is the direct replacement for 1100 series applications. Spline count and shaft diameter both have to match — verify yours before ordering.
1404-22 End Yoke — Spline Specs & 1100 Series Fitment
The 1100 series covers light-duty PTO and agricultural drive. The 1404-22 end yoke specs: 0.990" x 22/23 spline | 1.420"" hub dia | 2.750"" CJ-to-end | 1.360" bore. FITS STUB: 1453-232 OR 3053-233. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface. Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 1404-22 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.Key Features
- Series: 1100 — light-duty PTO and agricultural drive
- Spline: 0.990" x 22/23 — must match output shaft exactly
- Hub dia: 1.420"" — outer dimension, verify clearance
- CJ-to-end: 2.750"" — positions u-joint relative to axle flange
- Bore: 1.360"
- Style: SR
- Brand: UDS
- Note: FITS STUB: 1453-232 OR 3053-233
Specifications
- SKU: 1404-22
- Brand: UDS
- Series: 1100
- Spline Dia: 0.990"
- Spline Count: 22/23
- Hub Dia: 1.420""
- CJ to End: 2.750""
- Through Hole: 1.360"
- Style: SR
- Notes: FITS STUB: 1453-232 OR 3053-233
Additional information
| Cj to end | 2.750″ |
|---|---|
| Hub dia | 1.420″ |
| Notes | FITS STUB: 1453-232 OR 3053-233 |
| Partn number | 1404-22 |
| Series | 1100 |
| Splines count | 22/23 |
| Splines dia | 0.990″ |
| Style | SR |
| Through hole | 1.360″ |
