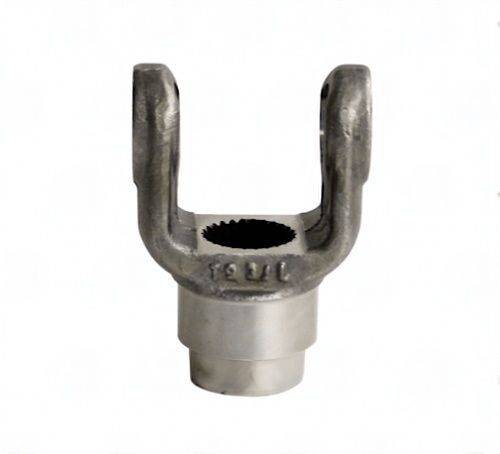

1404-261 – End Yoke – 1.129″ Splines Dia – 1.416″ Hub Dia – 26 Spline
$127.95
1 in stock
13 People watching this product now!
Description
1404-261 End Yoke — 1100 series, 1.129 x 26 spline | 1.416″ hub dia | 3.265″ CJ-to-end | 1.824 bore. Proven replacement, spline-specific fit. Count splines before ordering.
Full Description
The 1404-261 end yoke connects the driveshaft end to the axle or transfer case output shaft via a splined bore. Spline count and diameter are the critical dimensions — a mismatch here means the yoke either won't engage the shaft or will engage loosely and spin out under load. The 1404-261 end yoke is machined to one specific spline specification for 1100 series applications.
1404-261 End Yoke — Spline Specs & 1100 Series Fitment
The 1100 series covers light-duty PTO and agricultural drive. The 1404-261 end yoke specs: 1.129 x 26 spline | 1.416" hub dia | 3.265" CJ-to-end | 1.824 bore. USED ON MERKUR SHAFTS. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface. Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 1404-261 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.Key Features
- Series: 1100 — light-duty PTO and agricultural drive
- Spline: 1.129 x 26 — must match output shaft exactly
- Hub dia: 1.416" — outer dimension, verify clearance
- CJ-to-end: 3.265" — positions u-joint relative to axle flange
- Bore: 1.824
- Style: SR
- Brand: UDS
- Note: USED ON MERKUR SHAFTS
Specifications
- SKU: 1404-261
- Brand: UDS
- Series: 1100
- Spline Dia: 1.129
- Spline Count: 26
- Hub Dia: 1.416"
- CJ to End: 3.265"
- Through Hole: 1.824
- Style: SR
- Notes: USED ON MERKUR SHAFTS
Additional information
| Cj to end | 3.265 |
|---|---|
| Hub dia | 1.416 |
| Notes | USED ON MERKUR SHAFTS |
| Partn number | 1404-261 |
| Series | 1100 |
| Splines count | 26 |
| Splines dia | 1.129 |
| Style | SR |
| Through hole | 1.824 |
