Brand:

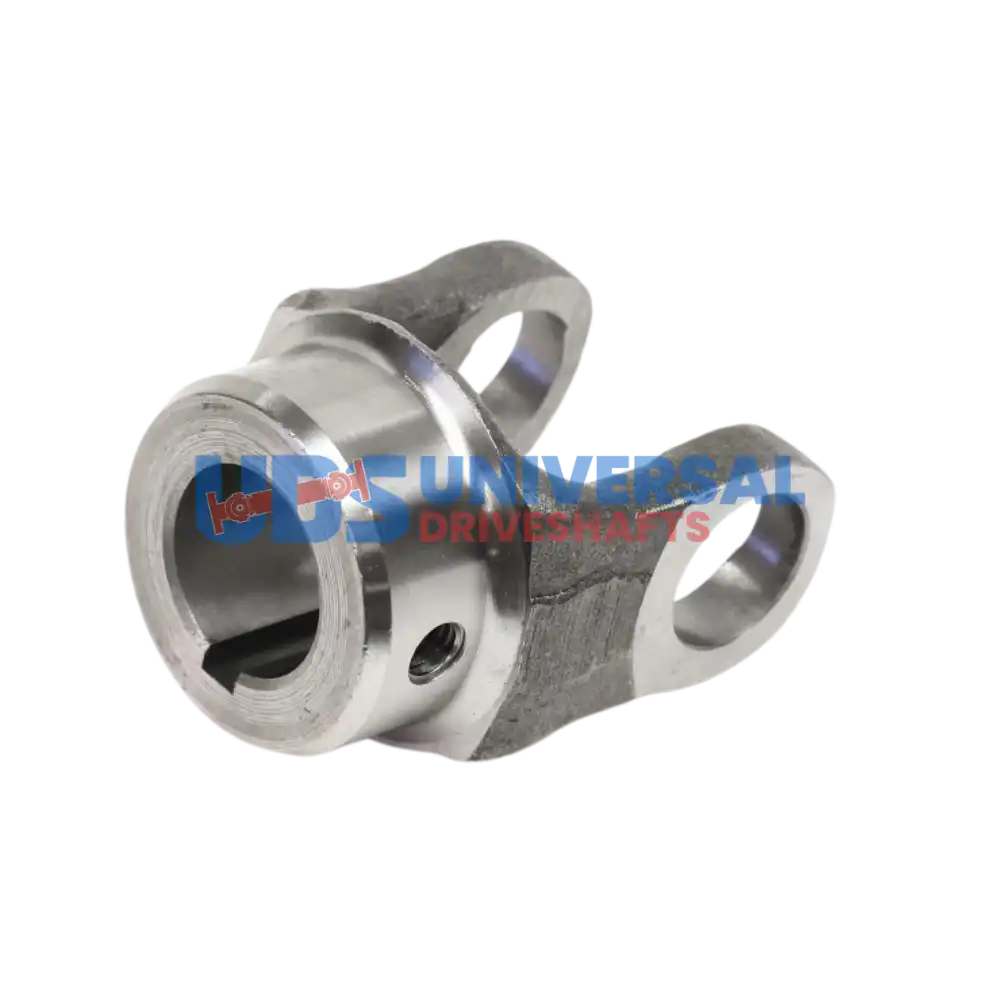

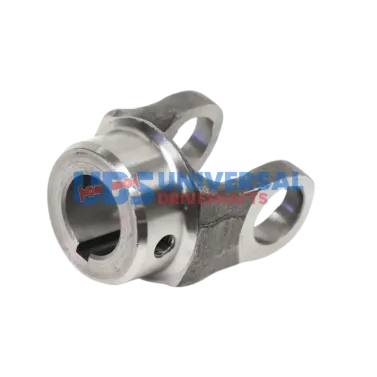

10-4-143 End Yoke – Round Bore 1000 Series, 1.125 Bore KEYWAY: 0.250 , Hub Diameter: 2.000
$19.95
50 in stock
15
People watching this product now!
Description
10-4-143 UDS 1000 series end yoke, ISR style, 1.125″ round bore, 0.250″ keyway, 2.25″ hub dia, 2.50″ CJ-to-end. Match bore diameter and keyway width before ordering.
Full Description
10-4-143 UDS End Yoke 1000 Series Round Bore 1.125 Bore 0.250 Keyway 2.25 Hub ISR
The 10-4-143 is a UDS 1000 series end yoke with an ISR (inside snap ring) retention style and a round bore configuration. The bore diameter is 1.125" with a 0.250" keyway (GAP-0.25). The hub diameter is 2.25", the CJ to end is 2.50", and the through-hole is 1.20". The 1000 series is the lightest-duty SAE series in this product range.
Specifications
- Part Number: 10-4-143
- Brand: UDS
- Series: 1000
- Style: ISR (Inside Snap Ring)
- Bore Type: Round
- Bore Diameter: 1.125"
- Keyway: GAP-0.25 (0.250")
- Hub Diameter: 2.25"
- CJ to End: 2.50"
- Through Hole: 1.20"
When fitting the 10-4-143, the mating shaft must be 1.125" diameter with a 0.250" keyway. The GAP-0.25 keyway designation indicates a standard gap-style key seat. The 2.25" hub diameter and 1.20" through-hole must be confirmed against the housing bore and retaining fastener dimensions. ISR retention requires the U-joint caps to have internal snap ring grooves seated inside the yoke ear bores — confirm U-joint style is ISR in the 1000 series.
The 1000 series is the lowest torque-rated SAE series available; confirm the application torque does not require a 1210 or higher series. The round bore with keyway configuration is used on light-duty machinery, agricultural equipment, and industrial shaft applications where keyed outputs are standard. Verify bore diameter is 1.125" and keyway width is 0.250" against the mating shaft before ordering the 10-4-143.
Additional information
| Cj to end | 2.50 |
|---|---|
| Hub dia | 2.25 |
| Partn number | 10-4-143 |
| Bore dia | 1.125 |
| Bore type | round |
| Keyway | GAP – 0.25 |
| Thru Hole | 1.20 |
| Brand | UDS |
| Splines count | N/A |
| Style | ISR |
| Series | 1000 |
