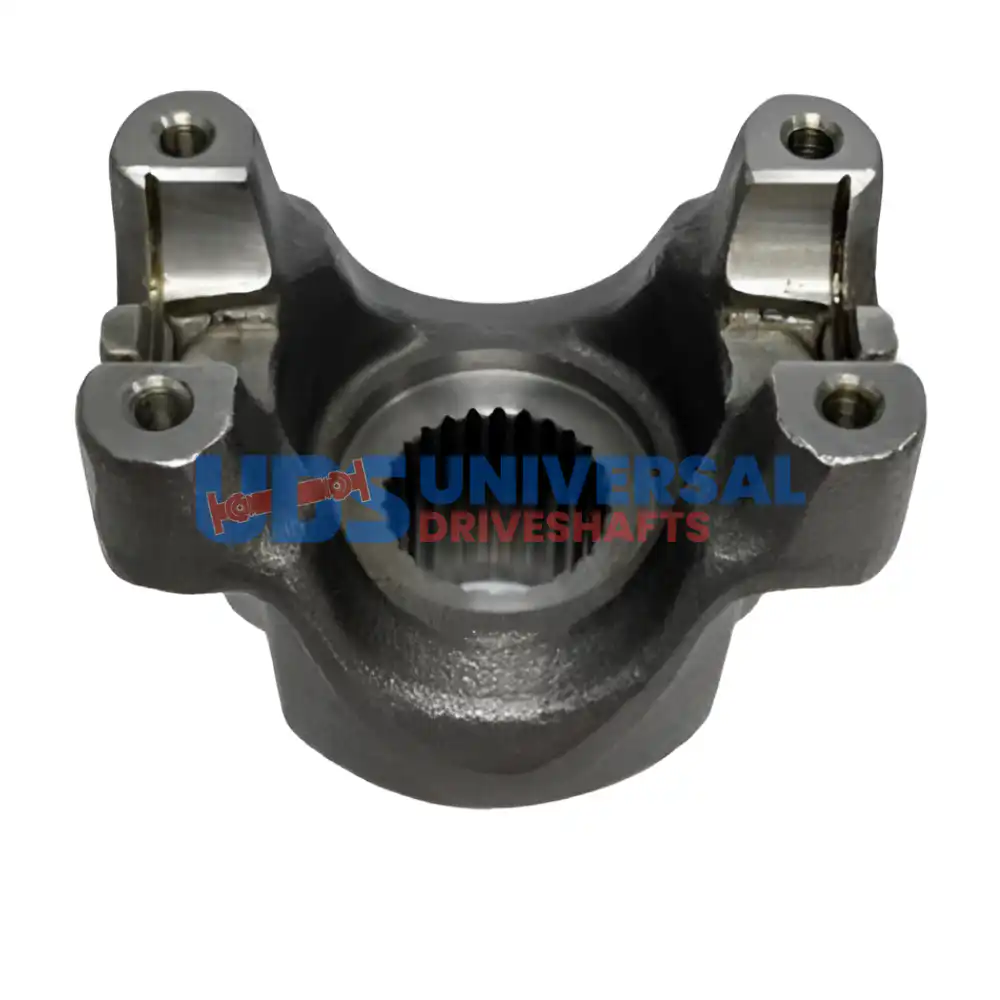

3104-264 – End Yoke – 26 x 1.146″ Splines – 3.000″ Cj To End – 1.453″ Hub Dia – Partn Number 3104-264
$45.79
11 in stock
15
People watching this product now!
Description
3104-264 end yoke, 1310 series strap style, 26 splines x 1.146″, 1.453″ hub, 3.000″ CJ-to-end. GM 8.2 midship application. Verify spline count and diameter before ordering.
Full Description
3104-264 End Yoke 1310 Series Strap Style 26 Splines 1.146 Dia 1.453 Hub GM 8.2 Midship
The 3104-264 is a 1310 series strap-style (BS) end yoke with 26 splines at a 1.146" spline diameter. The hub diameter is 1.453", the CJ to end is 3.000", and the through-hole is 1.469". Per the Notes attribute, this yoke is associated with GM 8.2 axle applications and is identified as a midship end yoke used across multiple applications.
Specifications
- Part Number: 3104-264
- Series: 1310
- Style: BS (Strap)
- Spline Count: 26
- Spline Diameter: 1.146"
- Hub Diameter: 1.453"
- CJ to End: 3.000"
- Through Hole: 1.469"
- Application: GM 8.2, midship end yoke, multiple applications
When fitting the 3104-264, confirm the output shaft has 26 splines at 1.146" diameter. The smaller 1.146" spline diameter compared to other 1310 yokes (such as the 1.375" bore variants) identifies this as a different output shaft specification — typical of some GM axle and midship applications. The 1.469" through-hole and 1.453" hub diameter must be verified against the housing bore and any retaining hardware geometry.
As a midship end yoke, the 3104-264 connects at the center section of a two-piece driveshaft, mating with the center bearing stub shaft. The GM 8.2 axle fitment note and the "multiple applications" notation indicate broad applicability across GM platforms using this midship spline spec. Strap-retention style requires compatible 1310 series U-joints — snap-ring style will not seat correctly. Count 26 splines and verify 1.146" diameter before ordering.
Additional information
| Cj to end | 3.000″ |
|---|---|
| Hub dia | 1.453 |
| Notes | GM 8.2, Midship end yoke used on multiple applications. |
| Partn number | 3104-264 |
| Series | 1310 |
| Splines count | 26 |
| Splines dia | 1.146 |
| Style | BS |
| Through hole | 1.469 |
