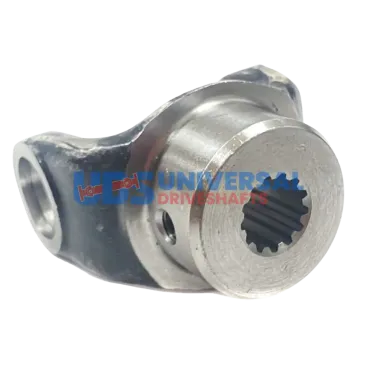

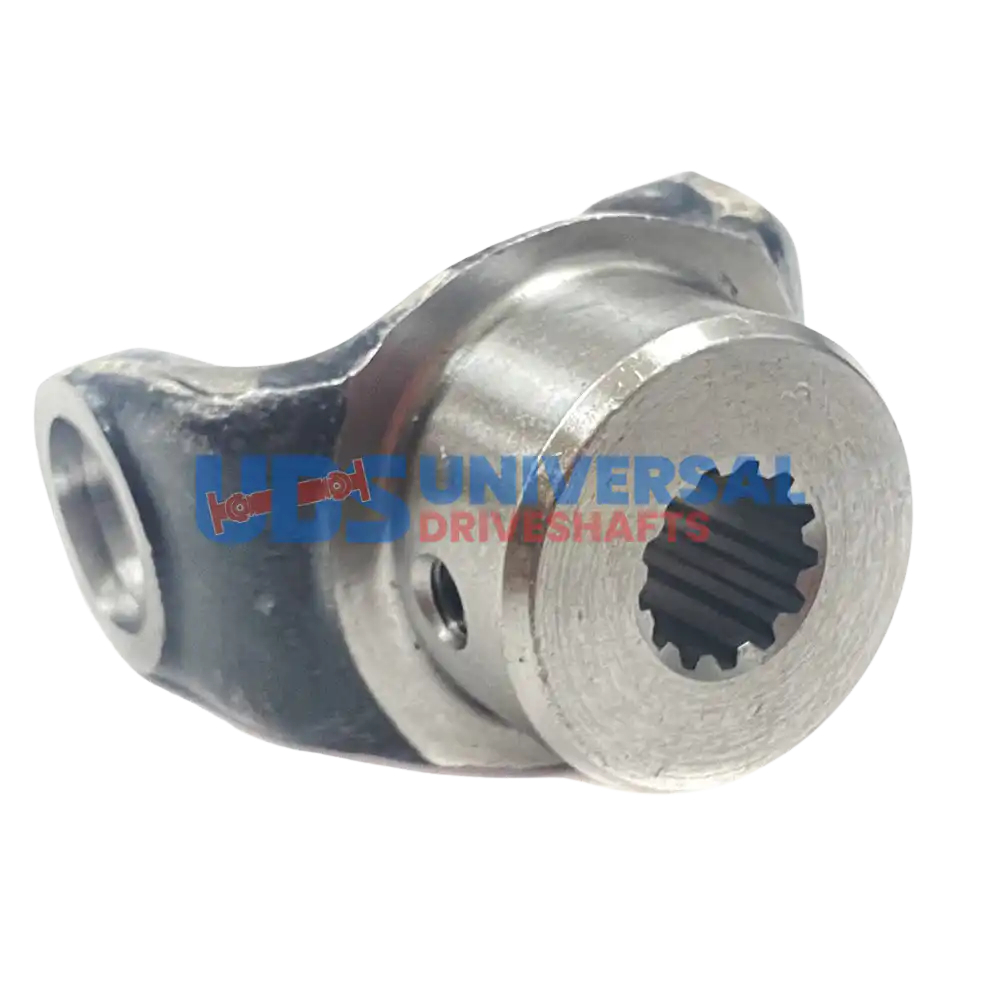

2-4-3331 End Yoke – Splined Bore 1310 Series, Snap Ring Style, Splines 0.878 x 13
$31.25
50 in stock
10
People watching this product now!
Description
2-4-3331 end yoke, 1310 series snap ring style, 0.878″x13 spline, 2.000″ hub dia, 2.562″ CJ-to-end. Verify 13-spline count and 0.878″ diameter before ordering.
Full Description
2-4-3331 End Yoke 1310 Series Snap Ring Style 0.878x13 Splines 2.000 Hub
The 2-4-3331 is a 1310 series snap ring style (SR) end yoke with a 0.878" spline diameter and 13-spline bore. The hub diameter is 2.000", the CJ to end dimension is 2.562", and the through-hole is 1.567". The snap ring retention style and 13-spline count at 0.878" diameter identify a specific output shaft configuration distinct from the more common 10-spline or 16-spline variants in the 1310 family.
Specifications
- Part Number: 2-4-3331
- Series: 1310
- Style: SR (Snap Ring)
- Spline Diameter: 0.878"
- Spline Count: 13
- Hub Diameter: 2.000"
- CJ to End: 2.562"
- Through Hole: 1.567"
When fitting the 2-4-3331, verify the output shaft has exactly 13 splines at 0.878" diameter. The small spline diameter (0.878") is associated with lighter-duty axle and transfer case outputs in some compact and mid-size applications. Snap ring retention (SR style) requires a retaining snap ring seated in the groove on the output shaft to secure the yoke axially — confirm the snap ring groove is present and undamaged on the output shaft before installation.
The 2-4-3331 is 1310 series; companion U-joints must be 1310 series to match cap geometry. The 2.000" hub diameter and 1.567" through-hole must clear any retaining hardware at the shaft end. The 13-spline count is uncommon — measure shaft splines carefully to confirm 13 before ordering the 2-4-3331.
Additional information
| Cj to end | 2.562 |
|---|---|
| Hub dia | 2.000 |
| Partn number | 2-4-3331 |
| Series | 1310 |
| Splines count | 13 |
| Splines dia | 0.878 |
| Style | SR |
| Through hole | 1.567 |
