10-0493 End Yoke – Round Bore 1000 series, Bore: 1.000 Keyway: 0.25 , Hub: 2.000 diameter

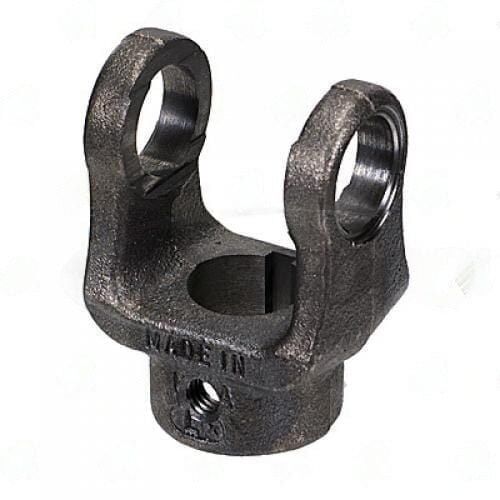

10-0493 1000 Series PTO End Yoke

The 10-0493 is a 1000 series PTO end yoke with a round bore. The bore diameter measures 1.000" with a hub diameter of 1.62". The keyway gap is 0.25", and the CJ-to-end dimension is 2.50". Through hole diameter is 1.20".

Specifications

• Part Number: 10-0493
• Series: 1000
• Bore Type: Round
• Bore Diameter: 1.000"
• Hub Diameter: 1.62"
• Keyway: GAP - 0.25
• CJ to End: 2.50"
• Through Hole: 1.20"

When fitting the 10-0493, confirm the round bore of 1.000" against the PTO shaft OD and verify the 0.25" keyway gap matches the key stock. The 1.62" hub diameter must seat cleanly against the shaft shoulder. Through hole of 1.20" establishes maximum bore for any locking device.

The 10-0493 uses a 1.000" round bore and 1.62" hub — a combination found on lighter PTO shafts in agricultural applications. Note the product name references a hub of 2.000" while the attribute data shows 1.62"; the attribute specification is the authoritative dimension. Measure the shaft and hub recess before ordering.
