10-4-0113 – End Yoke – 1000 Series – Bore Dia 1.125″ – 2.25″ Hub Dia

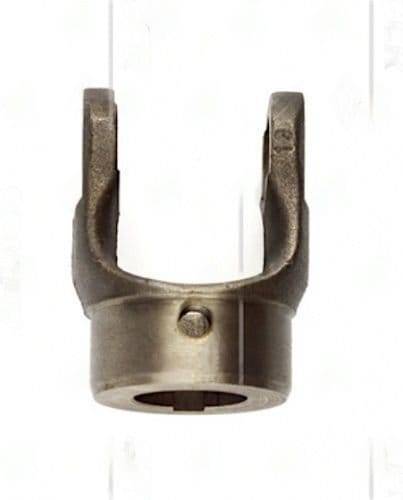

10-4-0113 1000 Series PTO End Yoke

The 10-4-0113 is a 1000 series PTO end yoke with a round bore. The bore diameter measures 1.125" with a hub diameter of 2.25". The keyway gap is 0.31", and the CJ-to-end dimension is 2.50". Through hole diameter is 1.20".

Specifications

• Part Number: 10-4-0113
• Series: 1000
• Bore Type: Round
• Bore Diameter: 1.125"
• Hub Diameter: 2.25"
• Keyway: GAP-0.31
• CJ to End: 2.50"
• Through Hole: 1.20"

When fitting the 10-4-0113, verify the 1.125" bore against the PTO shaft OD and confirm the 0.31" keyway gap matches the key stock. The 2.25" hub diameter must seat against the shaft shoulder without interference. Note that the keyway on the 10-4-0113 (GAP-0.31) is wider than similar 1000 series yokes with 0.25" keyways — confirm the shaft keyway width precisely.

The 10-4-0113 is dimensionally similar to the 10-4-0143 in bore and hub, but differs in keyway gap size (0.31" vs 0.25"). These are not interchangeable if your shaft key is cut to a specific width. Measure the existing keyway before selecting between these two part numbers.
