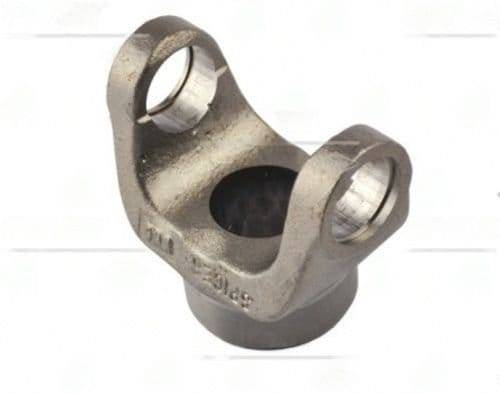

2-4-573 End Yoke 1310 – Round Bore , Bore: 1.250 , Keyway: 0.25 PTO
$16.76
+50 in stock
Description
2-4-573 PTO end yoke, 1310 series, 1.250 bore, 2.00 hub diameter, EAR-0.25 keyway. Direct-fit keyed shaft connection for agricultural and industrial PTO drivelines.
Full Description
Power take-off yokes must withstand high peak torques from implement engagement -- loads that are often more severe than anything seen in vehicle drivetrains. The 2-4-573 is forged and heat-treated for the cyclic loading of agricultural and industrial PTO service, with a bore specification of 1.250 inches and a 2.00 hub diameter that fits standard PTO output shafts.
Dimensional Reference
| Specification | Value |
|---|---|
| Series | 1310 |
| Bore Diameter | 1.250" |
| Hub Diameter | 2.00" |
| Bore Type | round |
| Keyway | EAR-0.25 |
| Through Hole | 1.62" |
| CJ to End | 2.56" |
| Part Number | 2-4-573 |
PTO Yoke Selection Fundamentals
A PTO end yoke must be sized for both the driveshaft U-joint series and the driven shaft geometry. The U-joint series -- in this case, 1310 -- determines the bearing cup cap diameter and torque rating. The bore, hub, and keyway dimensions determine whether the yoke will mount correctly on the PTO output shaft without excessive runout or fretting at the key-to-keyway interface.
The 1.250-inch bore of the 2-4-573 accommodates standard 1310 output shafts. The EAR-0.25 keyway transmits torque mechanically, but the retaining fastener -- typically a set screw or through-bolt specified in the equipment manual -- provides the axial retention that prevents the yoke from walking off the shaft under load reversals.
Installation and Torque Recommendations
- Clean the mating shaft and bore bore of any burrs or corrosion before assembly
- Verify keyway alignment is correct before pressing the yoke onto the shaft
- Apply Loctite 243 (medium-strength thread locker) to set screws where specified
- Torque the retaining hardware to specification -- PTO yokes that work loose under load cause rapid keyway and bore damage that requires shaft rework
- After installation, rotate the assembly by hand to verify zero runout before connecting the driveshaft
Stock Availability
Universal Driveshafts stocks the 2-4-573 and related 1310 series components for agricultural, construction, and industrial PTO applications. Same-day shipping is available on stocked items. For custom bore or keyway requirements, our shop can machine yokes to your specification from forged blanks.
Additional information
| Bore type | round |
|---|---|
| Cj to end | 2.56 |
| Hub dia | 2.00 |
| Keyway | EAR-0.25 |
| Partn number | 2-4-573 |
| Series | 1310 |
| Through hole | 1.62 |
| Bore dia | 1.250 |
