10-0452 – End Yoke – 1000 Series – 1.000″ Bore Dia – 2.25″ Hub Dia

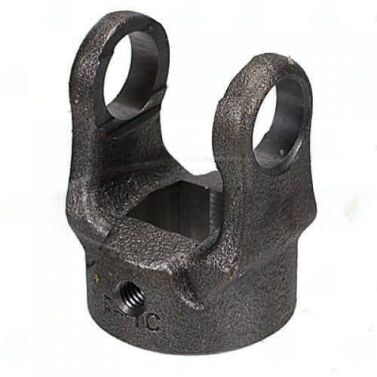

10-0452 1000 Series PTO End Yoke

The 10-0452 is a 1000 series PTO end yoke with a square bore configuration. The bore diameter measures 1.000" with a hub diameter of 2.25". There is no keyway (keyway value: 0), and the CJ-to-end dimension is 2.500". Through hole diameter is 1.24".

Specifications

• Part Number: 10-0452
• Series: 1000
• Bore Type: Square
• Bore Diameter: 1.000"
• Hub Diameter: 2.25"
• Keyway: None
• CJ to End: 2.500"
• Through Hole: 1.24"

When fitting the 10-0452, the PTO shaft must have a square cross-section measuring 1.000" across flats. The square bore geometry transmits torque without a keyway. Confirm the shaft measures 1.000" across flats. The 2.25" hub diameter is larger than comparable 1.62" hub variants in the 1000 series.

Square bore PTO yokes at 1.000" are found on mid-size agricultural equipment and some industrial implement drives. The 10-0452 uses a wider 2.25" hub compared to round bore 1.000" variants in this series. Verify both the square bore dimension and hub clearance against the mating shaft and implement housing before ordering.
