3-3-788KX Slip Yoke 1410 Series, Splines: 1.375 x 16 , Centerline To End 5.250
$35.47
8 in stock
13
People watching this product now!
Description
3-3-788KX UDS 1410 series slip yoke. 1.375 in x 16 spline, 5.250 in center U-joint to end. Verify stop shaft spline specs before ordering.
Full Description

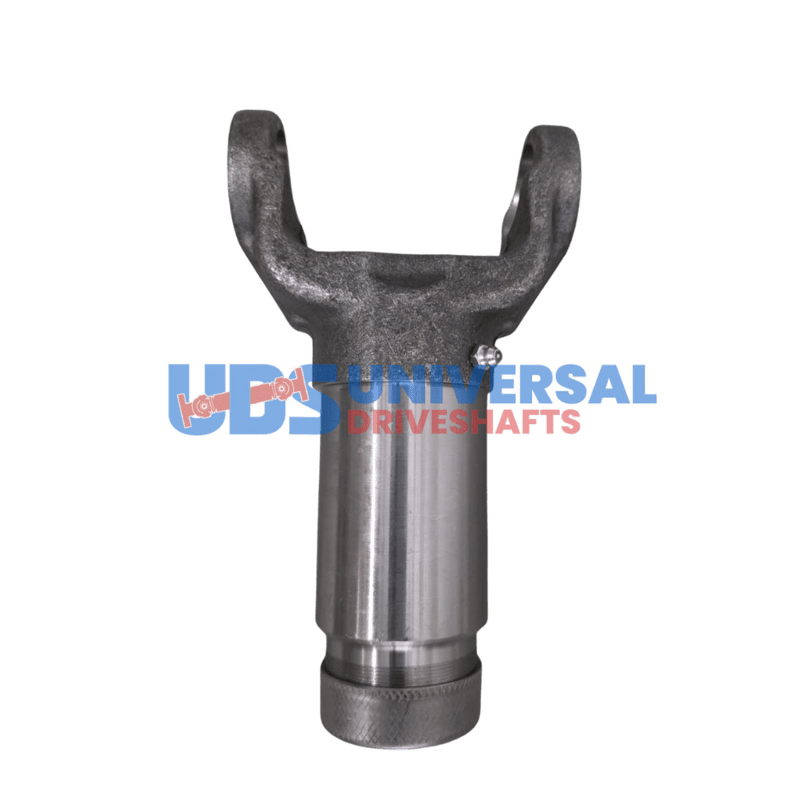

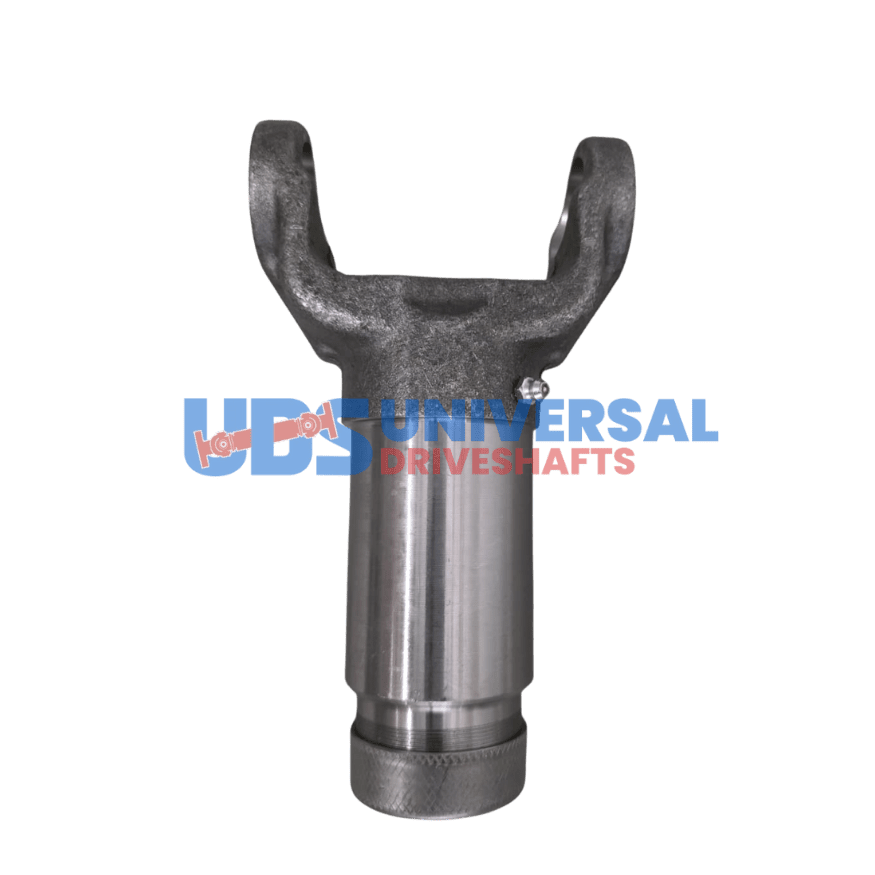

3-3-788KX UDS 1410 Series Slip Yoke
The 3-3-788KX is a UDS 1410 series slip yoke with a 1.375-inch spline diameter and 16-spline count. The centerline-to-end measurement is 5.250 inches. This yoke slides over the splined stop shaft at the front of the driveshaft assembly, providing the axial articulation required as the drivetrain suspension cycles through its range of motion.
Specifications
- Part Number: 3-3-788KX
- Brand: UDS
- Series: 1410
- Spline Diameter: 1.375 in
- Spline Count: 16
- Center U-Joint to End: 5.250 in
When fitting the 3-3-788KX, verify the stop shaft spline diameter is 1.375 inches with a 16-spline profile. The 5.250-inch CJ-to-end is slightly shorter than some 1410 series alternatives; confirm adequate engagement depth on the stop shaft for your specific driveshaft stroke requirements. The 1410 series is rated for high-torque applications and is commonly used on heavy light-duty and medium-duty truck drivelines.
The 3-3-788KX must be paired with 1410 series U-joints to maintain series integrity across the joint. Mismatching cap dimensions between the slip yoke and the U-joint will result in incorrect fit and potential joint failure under load.
Additional information
| Center u joint to end | 5.250 |
|---|---|
| Partn number | 3-3-788KX |
| Series | 1410 |
| Splines count | 16 |
| Splines dia | 1.375 |
| Brand | UDS |
