1551-26 Universal Joint Greaseable Kia/Mazda Series 26.50×50.5 ISR, 1.043X1.988 | 5-3245-1X
$36.79
48 in stock
11
People watching this product now!
Description
1551-26 UDS Kia/Mazda series U-joint, ISR style, 1.043″ cap dia, 1.988″ width, greaseable. Fits Kia Sportage 2003-2006, Kia Sorento AWD 2007-2010, Mazda RX3/Cosmo.
Full Description

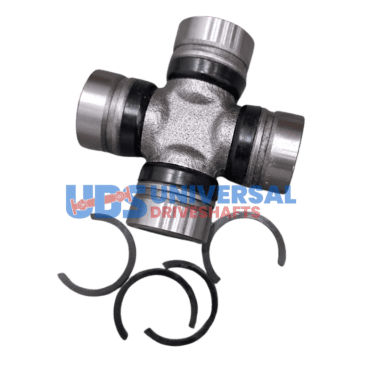

1551-26 UDS Universal Joint Kia/Mazda Series 26.50x50.5 ISR 1.043x1.988
The 1551-26 is a UDS Kia/Mazda series universal joint with ISR (inside snap ring) retention. Cap diameter is 1.043" and width is 1.988", corresponding to 26.50mm x 50.5mm metric cross dimensions. Per the Notes attribute, this U-joint fits the Kia Sportage front shaft (2003–2006), Kia Sorento AWD rear shaft (2007–2010), and Mazda RX3 and Cosmo applications. This joint is greaseable and cross-references to Spicer 5-3245-1X.
Specifications
- Part Number: 1551-26
- Brand: UDS
- Series: Kia/Mazda
- Style: ISR (Inside Snap Ring)
- Cap Diameter: 1.043"
- Width: 1.988"
- Lube: Yes (greaseable)
- Cross Reference: 5-3245-1X
- Applications: Kia Sportage front shaft 2003–2006, Kia Sorento AWD rear shaft 2007–2010, Mazda RX3, Mazda Cosmo
When fitting the 1551-26, confirm the yoke ear bore accepts ISR (inside snap ring) retention and that the bore diameter matches 1.043" cap diameter. ISR snap ring grooves are cut into the inside of the yoke ear bore — the snap rings must seat fully in their grooves before the joint is considered secure. The 1.988" width must match the span between the yoke ears on the Kia or Mazda driveshaft.
The 1551-26 cross-references to Spicer 5-3245-1X, which can be used to verify fitment against OEM Spicer catalog data for the listed Kia and Mazda applications. Kia/Mazda series cap dimensions (1.043" x 1.988") differ from standard SAE series — do not use a 1310 or similar series U-joint as a substitute. Verify 1.043" cap diameter against the yoke ear bore for the specific vehicle year and model before ordering.
Additional information
| Series | Kia/Mazda |
|---|---|
| Style | ISR |
| Cap dia 1 | 1.043 |
| Width 1 | 1.988 |
| Lube | Y |
| Brand | UDS |
| Notes | Kia Sportage Front Shaft (2003-2006 models), Kia Sorento AWD Rear Shaft (2007-2010 models), and Mazda RX3 & Cosmo components are available. |
