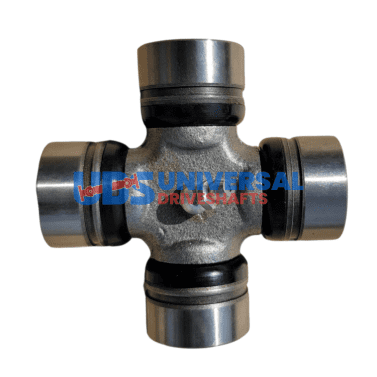

5-297X Greasable Universal Joint – 1310WJ Series 5-297X | 1.188X2.188
$10.70
+50 in stock
Description
5-297XU u-joint cross, 1310WJ series, 1.188″ cap diameter. Replacement universal joint cross for DANA 30 – DANA 35 , DANA 44 FRONT AXLE SHAFT BETWEEN FORD MPAR AND GM applications. Greaseable design.
Full Description
5-297XU Universal Joint -- 1310WJ Series, 1.188" Cap
The 5-297XU is a 1310WJ series universal joint cross with a 1.188" cap diameter and 2.188" overall width. This cross is greaseable. Application: DANA 30 - DANA 35 , DANA 44 FRONT AXLE SHAFT BETWEEN FORD MPAR AND GM.
Cross Specifications
| Specification | Value |
|---|---|
| Part Number | 5-297XU |
| Series | 1310WJ |
| Cap Diameter | 1.188" |
| Overall Width | 2.188" |
| Style | ISR |
| Greaseable | Yes |
| Brand | UDS |
| Notes | DANA 30 - DANA 35 , DANA 44 FRONT AXLE SHAFT BETWEEN FORD MPAR AND GM |
Series Compatibility
The 1310WJ series cross uses a 1.188" cap diameter. Confirm all four yoke ear bores are 1310WJ series before ordering -- mixing series causes uneven bearing loads and early failure. If you are unsure of your series, measure the cap OD on the old cross or the yoke bore ID.
Application: DANA 30 - DANA 35 , DANA 44 FRONT AXLE SHAFT BETWEEN FORD MPAR AND GM
This cross is designed for use in DANA 30 - DANA 35 , DANA 44 FRONT AXLE SHAFT BETWEEN FORD MPAR AND GM applications. Verify both the series and the overall width (2.188") match your shaft configuration. The width determines the phasing position within the yoke ears -- a cross that is too narrow will have excess endplay; one that is too wide will bind.
Lubrication & Service Life
This cross is greaseable. Grease via the zerk fitting at every oil change interval using NLGI 2 extreme-pressure grease -- purge until fresh grease exits each seal. Regular greasing is the single most effective way to extend u-joint life.
Replacement Procedure
- Support the driveshaft fully -- do not let it hang by the joint during removal.
- Remove all four snap rings from the yoke ear cap pockets.
- Press each cap out by pushing the opposite cap through the bore.
- Clean and inspect all four cap bores for wear or out-of-round condition.
- Press the new 5-297XU caps squarely into the bores and reinstall snap rings.
- Verify no binding through the full operating angle range.
DANA 30 - DANA 35 , DANA 44 FRONT AXLE SHAFT BETWEEN FORD MPAR AND GM
New to U-joints? See our universal joint guide for styles, snap-ring types, and measuring tips.
Alternative parts:
Additional information
| Series | 1310WJ |
|---|---|
| Lube | Yes |
| Style | ISR |
| Cap dia 1 | 1.188 |
| Width 1 | 2.188 |
| Partn number | 5-760X |
| Brand | UDS |
| Notes | DANA 30 – DANA 35 , DANA 44 FRONT AXLE SHAFT BETWEEN FORD MPAR AND GM |
