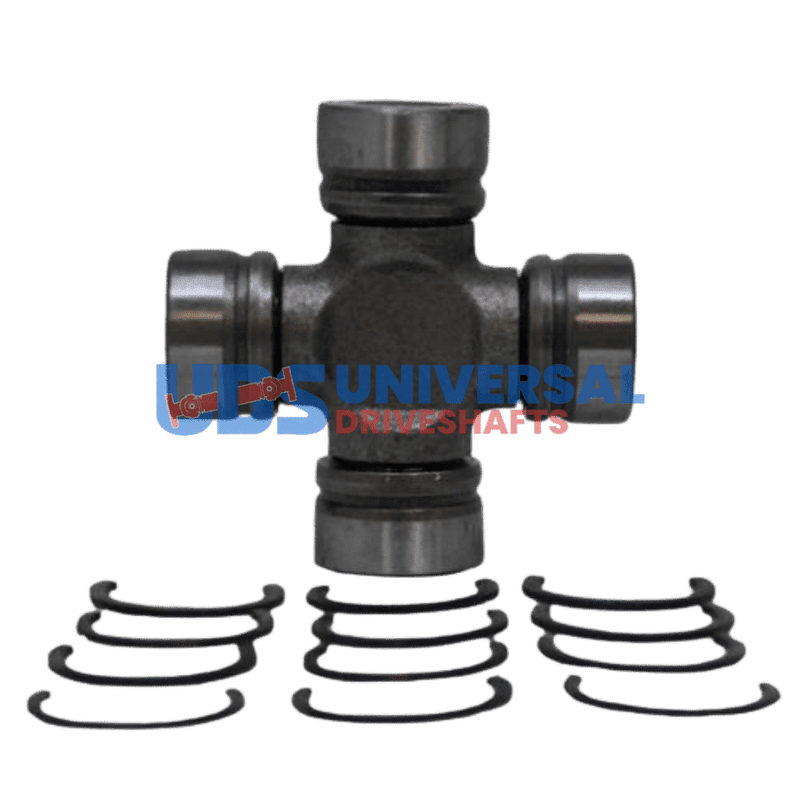

5-1515X Universal Joint 29×53 ISR ACURA, CHEVY , HONDA, GUIS52 , ISUZU 1.141X2.086 2-0383
$11.66
28 in stock
Description
5-1515X universal joint cross, FOREIGN series, 1.142″ cap diameter — replacement u-joint for MULTIPLE : ACURA, CHEVROLET, HONDA, ISUZU applications.
Full Description
5-1515X Universal Joint -- FOREIGN Series
The 5-1515X is a FOREIGN series universal joint cross designed for FOREIGN series driveshaft applications. Cap diameter is 1.142" with an overall width of 2.080". This cross is greaseable (zerk fitting included).
Dimensional Specifications
| Parameter | Value |
|---|---|
| Part Number | 5-1515X |
| Series | FOREIGN |
| Style | ISR |
| Cap Diameter | 1.142" |
| Width (across caps) | 2.080" |
| Lubrication | greaseable (zerk fitting included) |
| Brand | UDS |
| Notes | MULTIPLE : ACURA, CHEVROLET, HONDA, ISUZU |
Series & Compatibility
The FOREIGN series uses a 1.142" cap diameter. All four cap sockets must be FOREIGN series yoke bores -- mixing series at a single joint creates uneven bearing loads and will cause premature cap failure. Confirm the series designation on both yokes before installing this cross.
Lubrication & Maintenance
This cross is greaseable (zerk fitting included). Grease at every oil change interval with NLGI 2 extreme-pressure grease. Purge until fresh grease appears at each seal -- this also flushes contaminants from the bearing races.
Installation Notes
- Clean all four cap bores in the yoke ears before pressing in the new caps.
- Press caps squarely -- do not cock the cap during installation or the needle rollers will skew.
- Install all snap rings and confirm seating before applying full torque to the driveshaft.
- Check for binding through the full operating angle range after installation.
MULTIPLE : ACURA, CHEVROLET, HONDA, ISUZU
New to U-joints? See our universal joint guide for styles, snap-ring types, and measuring tips.
Additional information
| Series | FOREIGN |
|---|---|
| Style | ISR |
| Cap dia 1 | 1.142 |
| Width 1 | 2.080 |
| Lube | Yes |
| Brand | UDS |
| Notes | MULTIPLE : ACURA, CHEVROLET, HONDA, ISUZU |
