Brand:

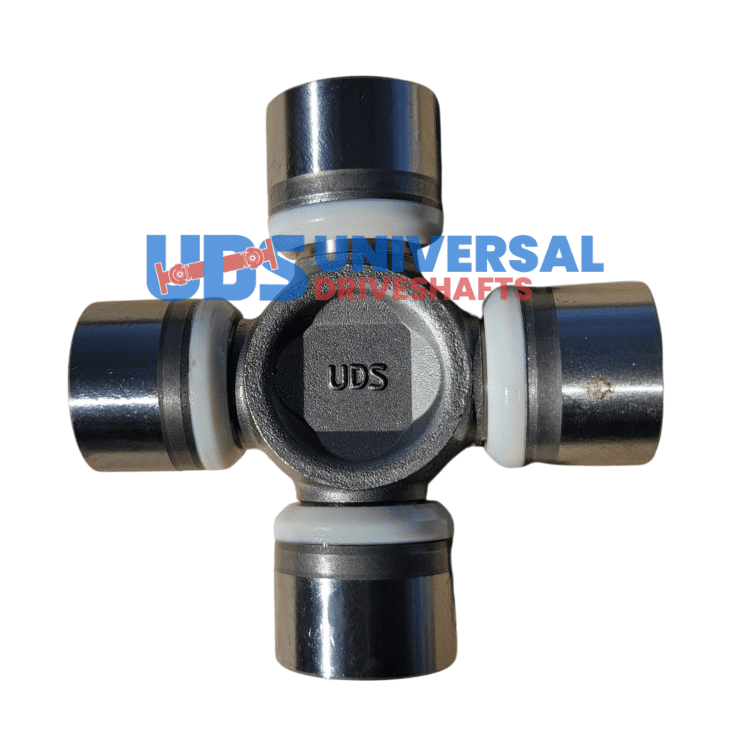

UDS 5-1310X Universal Joint 1310 Series, Lube for Life Premium Non-Greasable HEAVY DUTY COMES WITH 2 SNAP RINGS SIZES
$11.50
+50 in stock
Description
Genuine UDS Series 1310 universal joint 5-1310XU with 1.063″ bearing cups and sealed lubrication for reliable driveshaft performance.
Full Description
The 5-1310XU universal joint from UDS is precision-engineered for Series 1310 driveshaft applications. Featuring a cap diameter of 1.063" and a sealed design, this cross-and-bearing assembly delivers precise angular articulation with minimal rotational vibration. Whether you are tackling a routine drivetrain rebuild or engineering a custom shaft assembly, 5-1310XU provides the dimensional accuracy and material quality that professionals expect.
Technical Specifications -- 5-1310XU
| Specification | Value |
|---|---|
| Part Number | 5-1310XU |
| Brand | UDS |
| Series | 1310 |
| Cap Diameter (End 1) | 1.063" |
| Width / Span (End 1) | 3.219" |
| Lubrication | Sealed |
| Retention Style | OSR |
| Notes / Cross-Reference | SEALED |
Fitment & Series Compatibility
The 5-1310XU is dimensionally compatible with all standard Series 1310 yokes featuring 1.063"-diameter bore and the OSR snap-ring groove pattern. Confirm that both the transmission-side and axle-side yokes specify Series 1310 to ensure correct bearing cup engagement depth and adequate retaining ring seating.
Lubrication & Maintenance
The 5-1310XU features factory-sealed bearing cups filled with high-temperature synthetic grease at the time of manufacture. No field re-lubrication is required or possible. Inspect joint condition at each service interval by checking for radial play in any bearing cup; replace the joint assembly if perceptible lash is present. Sealed designs are preferred in applications where contamination exposure makes routine greasing impractical.
Application Notes
Factory application note for 5-1310XU: SEALED. Verify this cross-reference against the vehicle or equipment build sheet when substituting for an OEM part number. When replacing a worn joint, inspect the yoke ears for wear, the snap-ring grooves for deformation, and the bearing bore for out-of-round condition before installing the new assembly.
- Torque all u-bolt or strap bolts to specification after installation
- Balance the driveshaft assembly if replacing the joint on a high-speed shaft
- Use a press or dedicated cross-kit installation tool to prevent bearing cup misalignment
- Do not strike the cross with a hammer once bearing cups are seated
Why Source 5-1310XU from Universal Driveshafts?
Universal Driveshafts stocks a comprehensive range of Spicer and UDS cross kits to minimize downtime for fleet operators, OEM rebuilders, and off-road enthusiasts. The 5-1310XU ships from inventory with no minimum-order requirements. Each joint is packaged to protect bearing cup surfaces and snap rings during transit. Our technical team can assist with cross-referencing legacy part numbers and identifying the correct series upgrade when upgrading to a heavier-duty joint family.
Alternative parts:
Additional information
| Brand | UDS |
|---|---|
| Cap dia 1 | 1.063 |
| Lube | N |
| Notes | SEALED |
| Partn number | 1/05/1310 |
| Series | 1310 |
| Style | OSR |
| Width 1 | 3.219 |
