Brand:

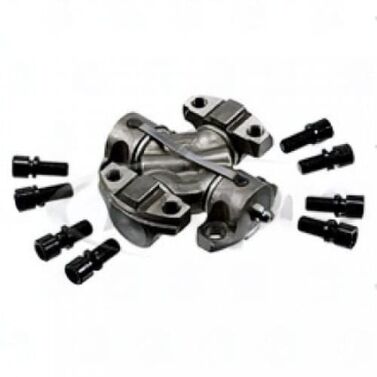

5-2116X UDS Universal Joint 2C – 2LWT & 2LWD HD
$35.44
28 in stock
Description
Genuine UDS Series 2 C universal joint 5-2116X with 1.312″ bearing cups and greaseable lubrication for reliable driveshaft performance.
Full Description
The 5-2116X is a UDS Series 2 C universal joint crafted for maximum reliability in high-cycle driveshaft environments. Bearing cap diameter 1.312" and overall width 3.125" match the OEM dimensional envelope, while the greaseable configuration allows grease fitting for field maintenance. Engineered for repeatable installation across multiple shaft assemblies.
Technical Specifications -- 5-2116X
| Specification | Value |
|---|---|
| Part Number | 5-2116X |
| Brand | UDS |
| Series | 2 C |
| Cap Diameter (End 1) | 1.312" |
| Width / Span (End 1) | 3.125" |
| Lubrication | Greaseable |
| Retention Style | LWT / TBC |
Series Identification & Cross-Reference
The 5-2116X is dimensionally compatible with all standard Series 2 C yokes featuring 1.312"-diameter bore and the LWT / TBC snap-ring groove pattern. Confirm that both the transmission-side and axle-side yokes specify Series 2 C to ensure correct bearing cup engagement depth and adequate retaining ring seating.
Lube Type & Service Interval
The 5-2116X includes a grease fitting (Zerk) at the center cross, allowing lubrication with standard NLGI #2 moly or lithium-complex grease. Purge old grease at each fitting until fresh grease appears at all four bearing caps. For on-highway applications, re-grease intervals of 5,000 miles or 3 months are typical; off-road and severe-duty applications warrant shorter intervals. Avoid over-pressurizing the fitting to prevent seal extrusion.
Installation Guidance
Install the 5-2116X using a hydraulic press or cross-kit driver to achieve proper bearing cup seating depth. Snap rings (OSR) or internal clips (ISR) must seat fully in their grooves before the shaft is placed into service. Post-installation, rotate the driveshaft by hand to verify no binding across the full range of joint angle.
- Match series (Series 2 C) on both yokes before ordering
- Replace both joints on a two-piece shaft simultaneously for balanced service life
- Inspect bearing cup snap-ring grooves for burrs that could prevent full ring seating
- Confirm phasing of double-cardan or two-joint shafts after assembly
Why Source 5-2116X from Universal Driveshafts?
Universal Driveshafts stocks a comprehensive range of Spicer and UDS cross kits to minimize downtime for fleet operators, OEM rebuilders, and off-road enthusiasts. The 5-2116X ships from inventory with no minimum-order requirements. Each joint is packaged to protect bearing cup surfaces and snap rings during transit. Our technical team can assist with cross-referencing legacy part numbers and identifying the correct series upgrade when upgrading to a heavier-duty joint family.
Additional information
| Brand | UDS |
|---|---|
| Cap dia 1 | 1.312 |
| Lube | Y |
| Partn number | 5-2116X |
| Series | 2 C |
| Style | LWT / TBC |
| Width 1 | 3.125 |
