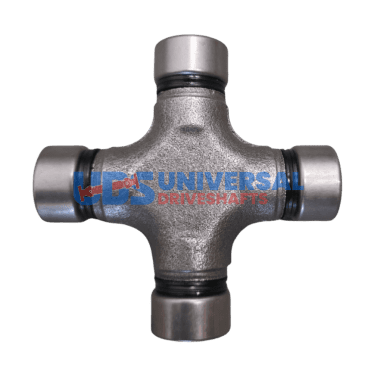

UJ2488U 24 x 88 SPRINTER Crimp in STAKED U JOINT Mercedes Sprinter / Dodge Sprinter / Freightliner Sprinter
$12.93
30 in stock
Description
UJ2488U universal joint cross, STAKED series, 0.944″ cap diameter — replacement u-joint for Mercedes Sprinter / Dodge Sprinter / Freightliner Sprinter / VW Crafter D = 24mm (0.944″) L = 88mm (3.464″) Specifications: Heavy duty universal joint 24mm x 88mm staked universal joint applications.
Full Description
Driveshaft U-Joint Cross -- UJ2488U, STAKED Series
The UJ2488U is a stock-replacement universal joint cross for STAKED series driveshafts. Cap diameter is 0.944", overall width is 3.464", fitting the yoke bore dimensions used on STAKED series driveshaft propshaft assemblies. This cross is sealed (pre-lubricated, no grease fitting).
Technical Data
| Specification | Value |
|---|---|
| Part Number | UJ2488U |
| Series | STAKED |
| Cap Dia. | 0.944" |
| Width | 3.464" |
| Style | STAKED |
| Greaseable | No |
| Brand | UDS |
| Notes | Mercedes Sprinter / Dodge Sprinter / Freightliner Sprinter / VW Crafter D = 24mm (0.944") L = 88mm (3.464") Specifications: Heavy duty universal joint 24mm x 88mm staked universal joint |
Correct Series Identification
Before ordering, confirm your driveshaft uses STAKED series u-joints. Measure across the cap OD of the old joint -- STAKED series measures 0.944". Also check the snap-ring retention style: external snap rings seat in a groove in the yoke ear, while internal snap rings seat in a groove in the cap itself. This cross uses the standard STAKED retention design.
Maintenance Protocol
This is a sealed cross -- no periodic greasing is required. Inspect for play, roughness, and seal damage at every major service interval and replace proactively if wear is detected.
Driveline Angle Check
While the driveshaft is out, check the pinion angle and transmission output angle. Both should be within 1 degree of each other (canceling phasing) and neither should exceed 3 degrees for smooth operation. Adjust pinion angle with shims or adjustable control arms as needed before installing the new joint.
App note: Mercedes Sprinter / Dodge Sprinter / Freightliner Sprinter / VW Crafter D = 24mm (0.944") L = 88mm (3.464") Specifications: Heavy duty universal joint 24mm x 88mm staked universal joint
Additional information
| Series | STAKED |
|---|---|
| Style | STAKED |
| Cap dia 1 | 0.944 |
| Width 1 | 3.464 |
| Lube | No |
| Brand | UDS |
| Notes | Mercedes Sprinter / Dodge Sprinter / Freightliner Sprinter / VW Crafter D = 24mm (0.944″) L = 88mm (3.464″) Specifications: Heavy duty universal joint 24mm x 88mm staked universal joint |
