Brand:
5-3252X UDS 5-115X 5-3252X Universal Joint BP 1500 Series
$47.03
25 in stock
Description
5-3252X u-joint cross, 1500 series, 1.560″ cap diameter. Replacement universal joint cross for comes with hardware applications. Greaseable design.
Full Description

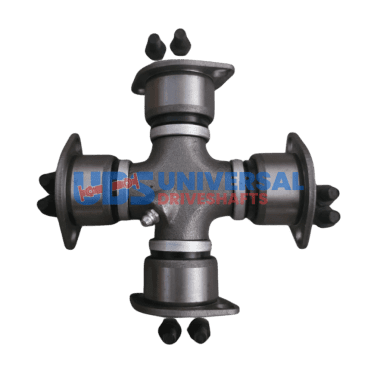

5-3252X Universal Joint -- 1500 Series, 1.560" Cap
The 5-3252X is a 1500 series universal joint cross with a 1.560" cap diameter and 4.550" overall width. This cross is greaseable. Application: comes with hardware.
Cross Specifications
| Specification | Value |
|---|---|
| Part Number | 5-3252X |
| Series | 1500 |
| Cap Diameter | 1.560" |
| Overall Width | 4.550" |
| Style | BP |
| Greaseable | Yes |
| Brand | UDS |
| Notes | comes with hardware |
Series Compatibility
The 1500 series cross uses a 1.560" cap diameter. Confirm all four yoke ear bores are 1500 series before ordering -- mixing series causes uneven bearing loads and early failure. If you are unsure of your series, measure the cap OD on the old cross or the yoke bore ID.
Application: comes with hardware
This cross is designed for use in comes with hardware applications. Verify both the series and the overall width (4.550") match your shaft configuration. The width determines the phasing position within the yoke ears -- a cross that is too narrow will have excess endplay; one that is too wide will bind.
Lubrication & Service Life
This cross is greaseable. Grease via the zerk fitting at every oil change interval using NLGI 2 extreme-pressure grease -- purge until fresh grease exits each seal. Regular greasing is the single most effective way to extend u-joint life.
Replacement Procedure
- Support the driveshaft fully -- do not let it hang by the joint during removal.
- Remove all four snap rings from the yoke ear cap pockets.
- Press each cap out by pushing the opposite cap through the bore.
- Clean and inspect all four cap bores for wear or out-of-round condition.
- Press the new 5-3252X caps squarely into the bores and reinstall snap rings.
- Verify no binding through the full operating angle range.
comes with hardware
New to U-joints? See our universal joint guide for styles, snap-ring types, and measuring tips.
Additional information
| Series | 1500 |
|---|---|
| Style | BP |
| Cap dia 1 | 1.560 |
| Width 1 | 4.550 |
| Lube | Yes |
| Brand | UDS |
| Notes | comes with hardware |
