Brand:

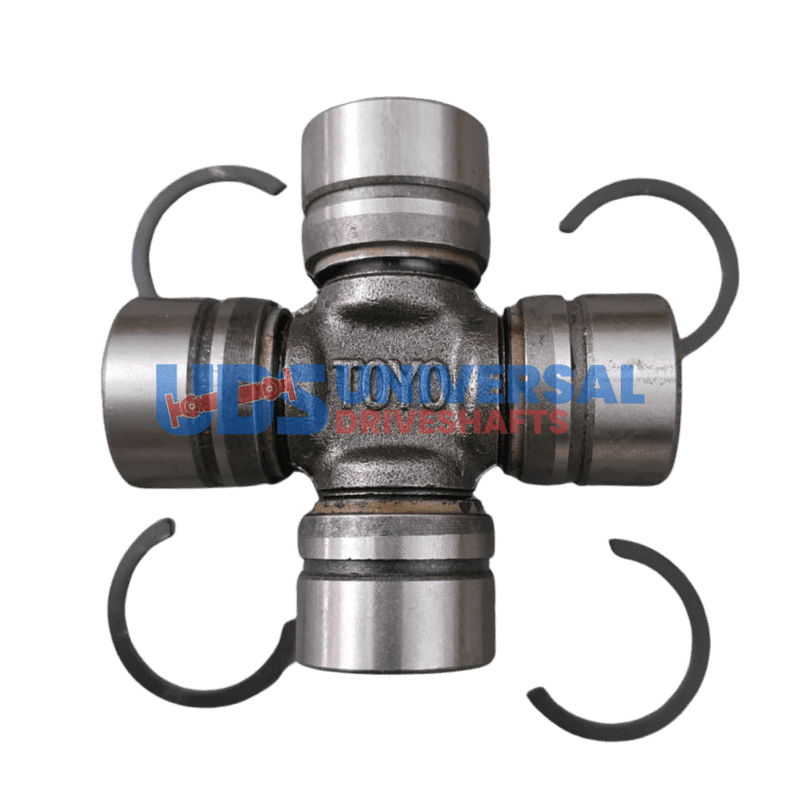

5-1510X U-Joint ISR 1510 series Toyota App 29x52mm 1.142x 2.047, 1-1612 / 1351-20 – UDS Brand.
$11.64
+50 in stock
Description
5-1510XU universal joint, 1510 series, 1.142″ cap diameter x 2.047″ cross width, greaseable design.
Full Description
Precision-engineered for demanding driveline applications, the 5-1510XU is a 1510 series universal joint offering reliable torque transfer with a 1.142" bearing cap diameter and overall cross width of 2.047". Manufactured to OEM-equivalent tolerances, this unit suits both replacement and performance upgrade scenarios.
Engineering Specifications
| Parameter | Value |
|---|---|
| Part Number | 5-1510XU |
| Series | 1510 |
| Style | ISR |
| Cap Diameter | 1.142 inches |
| Cross Width | 2.047 inches |
| Greaseable | Yes -- grease fitting included |
Design and Construction
The 5-1510XU cross and bearing kit is precision-machined from high-strength alloy steel, heat-treated to withstand torsional shock loads typical of performance and work-truck environments. The bearing cups feature tight dimensional tolerances to eliminate driveshaft vibration at all operating speeds. A zerk grease fitting allows periodic lubrication to extend service life.
Series Compatibility
At 1.142" cap diameter, this joint pairs with 1510-rated yokes and flanges. Notes indicate application in: Heavy Duty Toyota U Joint. Always torque companion flange bolts to specification and check phasing after installation.
Installation Guidelines
- Clean yoke bores thoroughly before pressing in new bearing cups
- Use a proper U-joint press tool -- never strike the cross with a hammer
- Confirm snap rings seat fully in grooves to prevent cup walk
- Grease through zerk fitting until grease purges from all four bearing cups
- Check driveshaft runout after installation: max 0.010" TIR recommended
Why Choose Universal Driveshafts
Universal Driveshafts stocks the full spectrum of U-joint sizes and series, from compact 1210-series light-duty joints to heavy-duty SPL-series industrial crosses. The 5-1510XU ships same-day from our warehouse when ordered before 2 PM. Our technical team is available to confirm fitment for custom or non-standard driveshaft configurations.
New to U-joints? See our universal joint guide for styles, snap-ring types, and measuring tips.
Additional information
| Series | 1510 |
|---|---|
| Style | ISR |
| Cap dia 1 | 1.142 |
| Width 1 | 2.047 |
| Lube | Yes |
| Brand | UDS |
| Notes | Heavy Duty Toyota U Joint |
| Partn number | 5-1510X |
