Brand:

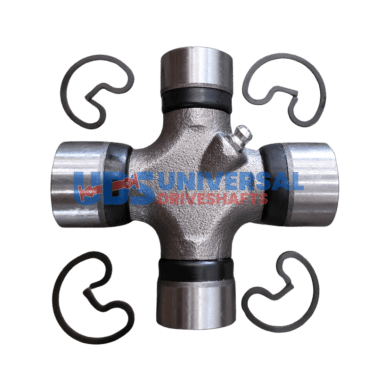

5-648XU Universal Joint 1330 to 1350 Combination U-Joint – Greasable 5-648X
$11.64
+50 in stock
Description
5-648XU — UDS 1330X1350 Series U-joint, 1.063″ cap diameter, 3.625″ width, greaseable (Zerk fitting). Direct replacement for 1330X1350 Series driveline applications.
Full Description
5-648XU -- UDS 1330X1350 Series universal joint. Cap diameter 1.063", width 3.625", greaseable (Zerk fitting). This is a combination/conversion U-joint that bridges two different series, allowing a driveshaft upgrade without replacing both end yokes. Engineered to the 1330X1350 Series dimensional standard for direct replacement in all compatible yoke configurations.
Engineering Data
The bearing cup diameter and overall width are the two critical dimensions for U-joint selection. The 5-648XU is sized for 1330X1350 Series yokes -- verify that your yoke bore diameter matches 1.063" before ordering. A U-joint that is even slightly undersized will rock in the bore and fail within hours of operation.
| Specification | Value |
|---|---|
| Series | 1330X1350 Series |
| Cap Diameter | 1.063" |
| Width (Cap to Cap) | 3.625" |
| Lube Type | greaseable (Zerk fitting) |
| End Style | COMBO |
| Notes | 1330 TO 1350 |
| Brand | UDS |
Specification Table
Complete dimensional data for the 5-648XU. No interpolation -- these are as-manufactured figures.
Lubrication and Maintenance
This joint is greaseable (Zerk fitting). A Zerk fitting allows chassis grease injection at regular service intervals. Grease the joint every 5,000 miles or at every oil change -- whichever comes first -- to flush out water and contaminants. Neglecting lubrication is the single most common cause of premature U-joint failure.
Application: 1330 TO 1350
5-648XU is stocked and ships from Universal Driveshafts. Pair with 1330X1350 Series end yokes and a balanced driveshaft for a complete drivetrain service.
Alternative parts:
Additional information
| Brand | UDS |
|---|---|
| Cap dia 1 | 1.063 |
| Cap dia 2 | 1.188 |
| Lube | Y |
| Notes | 1330 TO 1350 |
| Partn number | 5-648XU |
| Series | 1330X1350 |
| Style | COMBO |
| Width 1 | 3.625 |
| Width 2 | 3.625 |
