Brand:

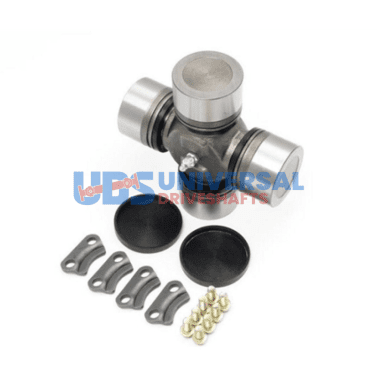

SPL250-3X UDS Universal Joint 60X163MM SPL250
$70.49
+50 in stock
Description
SPL250-3XU — UDS SPL250 Series U-joint, 2.362″ cap diameter, 6.417″ width, greaseable (Zerk fitting). Direct replacement for SPL250 Series driveline applications.
Full Description
The SPL250-3XU universal joint from UDS delivers the dimensional precision that SPL250 Series driveshaft systems require. With a 2.362" cap diameter, 6.417" overall width, and greaseable (Zerk fitting) design, this U-joint provides a direct service replacement across the full range of SPL250 Series applications.
Performance and Design
Universal joints carry the full torque and bending loads of the driveshaft system. Every dimension on the SPL250-3XU is held to the SPL250 Series standard: bearing cup bores that seat tightly in the yoke ears, a cross trunnion ground to consistent diameter across all four arms, and retention features that match the SPRTAB yoke design.
- Cap diameter: 2.362"
- Cap-to-cap width: 6.417"
- Lubrication: greaseable (Zerk fitting)
- Application note: SPL250
| Specification | Value |
|---|---|
| Series | SPL250 Series |
| Cap Diameter | 2.362" |
| Width (Cap to Cap) | 6.417" |
| Lube Type | greaseable (Zerk fitting) |
| End Style | SPRTAB |
| Notes | SPL250 |
| Brand | UDS |
Full Specification Data
Dimensional specifications for the SPL250-3XU. Cross-reference against your existing U-joint or the series rating of your driveshaft assembly.
Service and Replacement Guidance
U-joint service intervals depend on operating conditions. High-speed highway use in a balanced driveshaft produces less wear than low-speed off-road use with severe articulation angles. Inspect joints at every other oil change -- look for rust seeping from the bearing cups, axial play in the cross trunnion, or a squeaking noise during low-speed acceleration. Any of these symptoms indicate the joint is approaching end of life.
When replacing, use a proper U-joint press to seat the bearing cups squarely. Uneven seating causes the joint to bind at one point in its rotation, which manifests as a driveline vibration that tracks with vehicle speed -- often misdiagnosed as tire imbalance.
SPL250-3XU is stocked and ships from Universal Driveshafts. Pair with SPL250 Series end yokes and a balanced driveshaft for a complete drivetrain service.
New to U-joints? See our universal joint guide for styles, snap-ring types, and measuring tips.
Alternative parts:
Additional information
| Brand | UDS |
|---|---|
| Cap dia 1 | 2.362 |
| Lube | Y |
| Notes | SPL250 |
| Partn number | SPL250-3XU |
| Series | SPL250 |
| Style | SPRTAB |
| Width 1 | 6.417 |
