Brand:

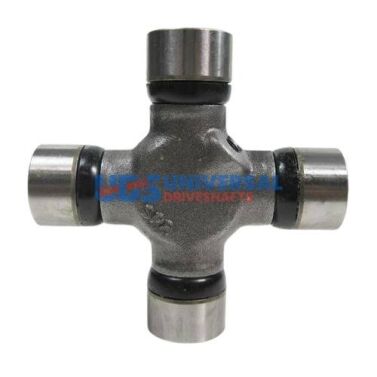

5-160X Universal Joint 1410 SERIES GREASEABLE 30.2X106MM – 1.188 X 4.188 INCHE ,
$9.41
+50 in stock
Description
5-160XU universal joint, 1410 series, 1.188″ cap diameter x 4.188″ cross width, greaseable design.
Full Description
Extending driveline service life starts with the right replacement parts. The 5-160XU -- a 1410 series universal joint with 1.188" caps and 4.188" cross width -- is built to restore factory-level driveshaft performance and resist the wear mechanisms that cause premature U-joint failure.
Understanding U-Joint Wear
Universal joints operate under continuous oscillating loads and, in many applications, are exposed to road grime, water, and extreme temperatures. Bearing cup surfaces develop micro-pitting when lubrication fails, leading to driveline vibration, clunking, and ultimately complete joint seizure. The 5-160XU addresses these failure modes with hardened alloy steel crosses and precision-ground bearing cups that maintain consistent clearance throughout their service life.
Specifications at a Glance
| Attribute | Value |
|---|---|
| Part Number | 5-160XU |
| Series | 1410 |
| Style | OSR |
| Cap Diameter | 1.188 in. |
| Cross Width | 4.188 in. |
| Lube Port | Standard zerk fitting -- grease serviceable |
Lubrication Strategy
This joint includes a standard grease fitting. For maximum longevity, purge old grease and re-pack every 30,000 miles or annually -- whichever comes first. Use a NLGI #2 chassis grease rated for U-joint service.
Installation Best Practices
- Measure yoke bore diameter and snap ring groove depth before installation
- Use dedicated bearing cup press tools to avoid cocking the cups
- Lightly oil snap ring grooves before seating new rings
- Rotate the installed joint through full range of motion -- smooth operation confirms correct seating
- Torque all companion fasteners to OEM specification after installation
Fitment Notes
This joint is noted for use with: Lube fitting in cross. Confirm series and cap dimensions match your driveshaft assembly.
Order with Confidence
Universal Driveshafts provides 1410 series components for automotive, light truck, and specialty vehicle applications. The 5-160XU ships fast and includes all necessary hardware. Questions about fitment? Our driveline specialists answer by phone and email.
Additional information
| Brand | UDS |
|---|---|
| Cap dia 1 | 1.188 |
| Lube | Y |
| Notes | Lube fitting in cross |
| Partn number | 5-160X |
| Series | 1410 |
| Style | OSR |
| Width 1 | 4.188 |
