Brand:

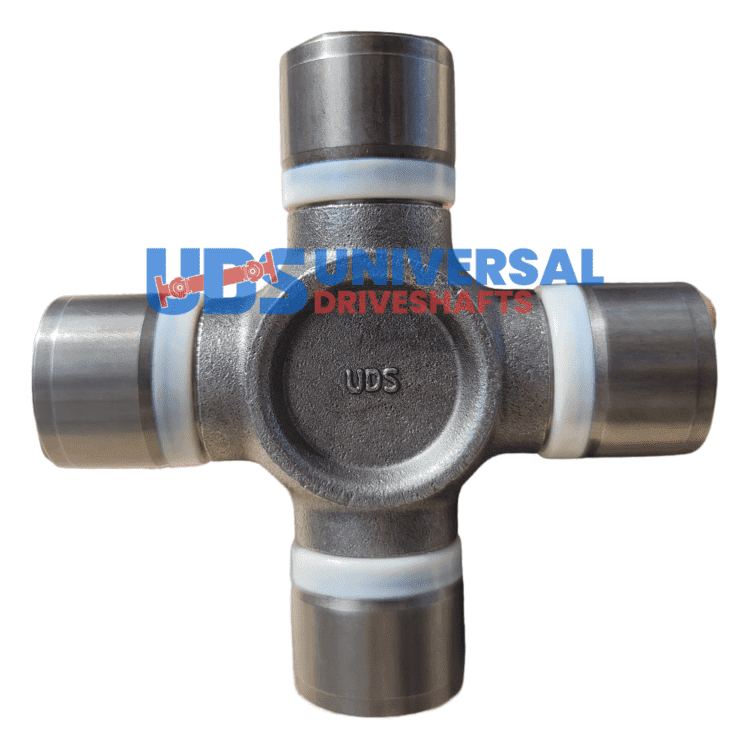

UDS 5-1410X Universal Joint 1410 Series Lube for Life Premium Non-Greasable HEAVY DUTY COMES WITH 2 SNAP RINGS SIZES
$17.37
+50 in stock
Description
Genuine UDS Series 1410 universal joint 5-1410XU with 1.188″ bearing cups and sealed lubrication for reliable driveshaft performance.
Full Description
The 5-1410XU is a UDS Series 1410 universal joint crafted for maximum reliability in high-cycle driveshaft environments. Bearing cap diameter 1.188" and overall width 4.188" match the OEM dimensional envelope, while the sealed configuration allows factory-sealed, maintenance-free design. Engineered for repeatable installation across multiple shaft assemblies.
Technical Specifications -- 5-1410XU
| Specification | Value |
|---|---|
| Part Number | 5-1410XU |
| Brand | UDS |
| Series | 1410 |
| Cap Diameter (End 1) | 1.188" |
| Width / Span (End 1) | 4.188" |
| Lubrication | Sealed |
| Retention Style | OSR |
| Notes / Cross-Reference | SEALED |
Series Identification & Cross-Reference
The 5-1410XU is dimensionally compatible with all standard Series 1410 yokes featuring 1.188"-diameter bore and the OSR snap-ring groove pattern. Confirm that both the transmission-side and axle-side yokes specify Series 1410 to ensure correct bearing cup engagement depth and adequate retaining ring seating.
Lube Type & Service Interval
The 5-1410XU features factory-sealed bearing cups filled with high-temperature synthetic grease at the time of manufacture. No field re-lubrication is required or possible. Inspect joint condition at each service interval by checking for radial play in any bearing cup; replace the joint assembly if perceptible lash is present. Sealed designs are preferred in applications where contamination exposure makes routine greasing impractical.
Installation Guidance
Factory application note for 5-1410XU: SEALED. Verify this cross-reference against the vehicle or equipment build sheet when substituting for an OEM part number. When replacing a worn joint, inspect the yoke ears for wear, the snap-ring grooves for deformation, and the bearing bore for out-of-round condition before installing the new assembly.
- Torque all u-bolt or strap bolts to specification after installation
- Balance the driveshaft assembly if replacing the joint on a high-speed shaft
- Use a press or dedicated cross-kit installation tool to prevent bearing cup misalignment
- Do not strike the cross with a hammer once bearing cups are seated
Why Source 5-1410XU from Universal Driveshafts?
Universal Driveshafts stocks a comprehensive range of Spicer and UDS cross kits to minimize downtime for fleet operators, OEM rebuilders, and off-road enthusiasts. The 5-1410XU ships from inventory with no minimum-order requirements. Each joint is packaged to protect bearing cup surfaces and snap rings during transit. Our technical team can assist with cross-referencing legacy part numbers and identifying the correct series upgrade when upgrading to a heavier-duty joint family.
Alternative parts:
Additional information
| Brand | UDS |
|---|---|
| Cap dia 1 | 1.188 |
| Lube | N |
| Notes | SEALED |
| Partn number | 5-1410XU |
| Series | 1410 |
| Style | OSR |
| Width 1 | 4.188 |
