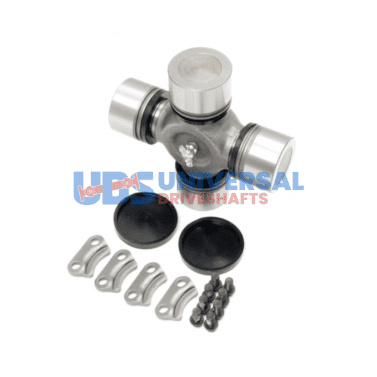

SPL170-4X Universal Joint 55MM X 163.9MM Greasable Heavy Duty Comes with Hardware 6-1170 SPL170
$62.23
45 in stock
Description
SPL170-4XU universal joint, SPL170-4X series, 2.165″ cap diameter x 6.456″ cross width, greaseable design.
Full Description
Precision-engineered for demanding driveline applications, the SPL170-4XU is a SPL170-4X series universal joint offering reliable torque transfer with a 2.165" bearing cap diameter and overall cross width of 6.456". Manufactured to OEM-equivalent tolerances, this unit suits both replacement and performance upgrade scenarios.
Engineering Specifications
| Parameter | Value |
|---|---|
| Part Number | SPL170-4XU |
| Series | SPL170-4X |
| Style | SPRTAB |
| Cap Diameter | 2.165 inches |
| Cross Width | 6.456 inches |
| Greaseable | Yes -- grease fitting included |
Design and Construction
The SPL170-4XU cross and bearing kit is precision-machined from high-strength alloy steel, heat-treated to withstand torsional shock loads typical of performance and work-truck environments. The bearing cups feature tight dimensional tolerances to eliminate driveshaft vibration at all operating speeds. A zerk grease fitting allows periodic lubrication to extend service life.
Series Compatibility
At 2.165" cap diameter, this joint pairs with SPL170-4X-rated yokes and flanges. Notes indicate application in: SPL170. Always torque companion flange bolts to specification and check phasing after installation.
Installation Guidelines
- Clean yoke bores thoroughly before pressing in new bearing cups
- Use a proper U-joint press tool -- never strike the cross with a hammer
- Confirm snap rings seat fully in grooves to prevent cup walk
- Grease through zerk fitting until grease purges from all four bearing cups
- Check driveshaft runout after installation: max 0.010" TIR recommended
Why Choose Universal Driveshafts
Universal Driveshafts stocks the full spectrum of U-joint sizes and series, from compact 1210-series light-duty joints to heavy-duty SPL-series industrial crosses. The SPL170-4XU ships same-day from our warehouse when ordered before 2 PM. Our technical team is available to confirm fitment for custom or non-standard driveshaft configurations.
Alternative parts:
Additional information
| Brand | UDS |
|---|---|
| Cap dia 1 | 2.165 |
| Lube | Y |
| Notes | SPL170 |
| Partn number | SPL170-4X |
| Series | SPL170-4X |
| Style | SPRTAB |
| Width 1 | 6.456 |
