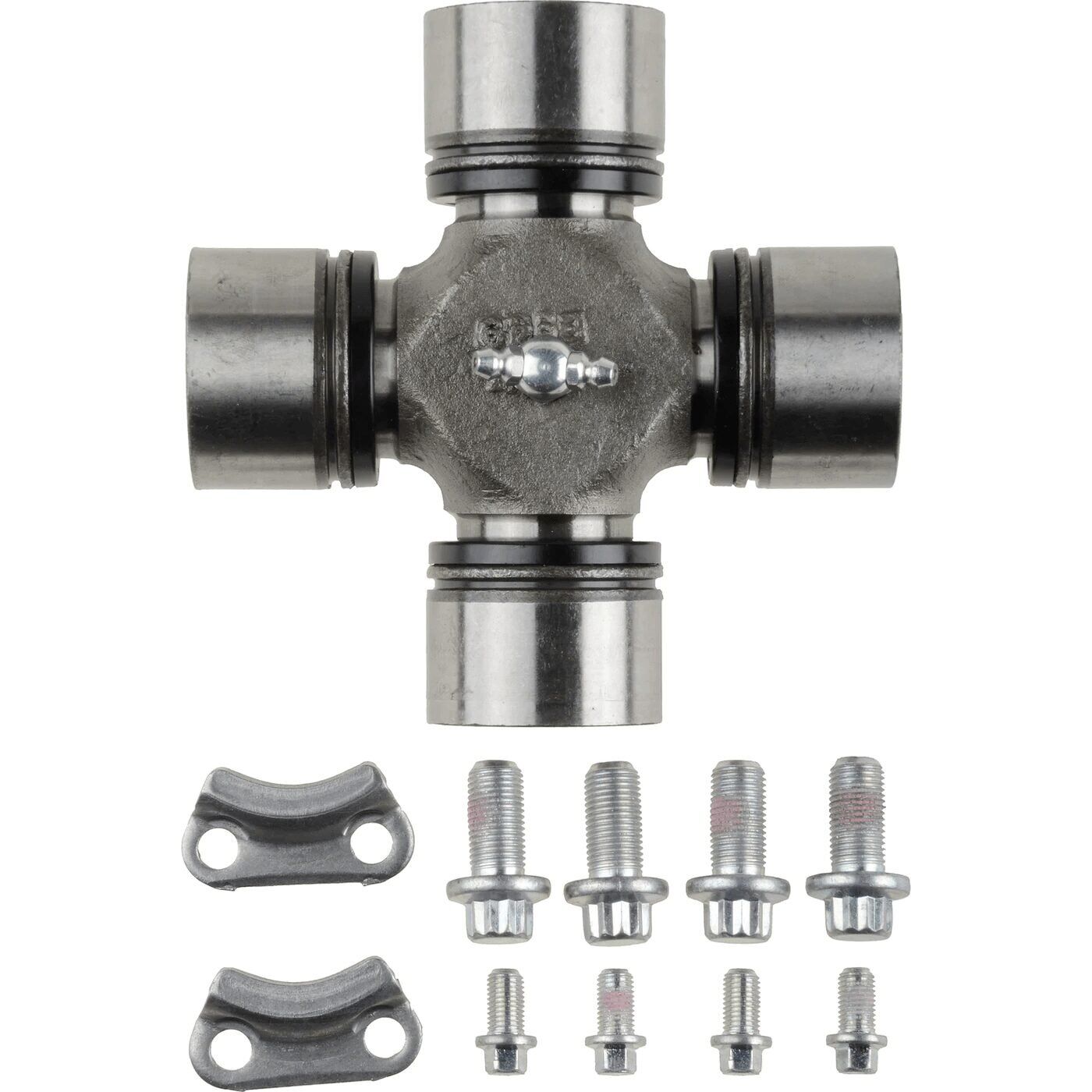

SPL140X Universal Joint SPL140 Series, Greasable 49.2mm X 140mm Comes With Hardware
$37.44
+50 in stock
Description
SPL140XU universal joint, SPL140 series, 1.938″ cap diameter x 5.461″ cross width, greaseable design.
Full Description
The SPL140XU universal joint delivers dependable driveline performance in the SPL140 series. With a 1.938" bearing cap and 5.461" cross width, it provides a direct-fit replacement or upgrade path for worn or damaged OEM joints.
Product Overview
Universal joints wear over time -- the telltale clunk on acceleration and vibration at highway speeds are classic signs that replacement is due. The SPL140XU restores original driveline smoothness with precise bearing cup dimensions that match factory specifications. Grease fittings are included so you can service the joint at each oil change interval.
Technical Data
| Specification | Detail |
|---|---|
| SKU / Part No. | SPL140XU |
| U-Joint Series | SPL140 |
| Mounting Style | SPRTAB |
| Cap Diameter | 1.938" |
| Overall Width | 5.461" |
| Lubrication | Greaseable |
Dimensional Compatibility
The 1.938" cap diameter is the key fitment dimension for SPL140 series driveshafts. Cross width of 5.461" determines yoke span -- always measure existing joint width or consult your driveshaft data plate before ordering. Mixing series or non-matching cap sizes results in improper snap ring groove alignment and premature bearing failure.
Replacement Procedure
- Support the vehicle safely on jack stands with transmission in neutral
- Mark driveshaft-to-differential flange orientation before removal
- Press out old bearing cups using a bench vise or dedicated U-joint tool
- Clean yoke ear bores and inspect for scoring or out-of-round wear
- Install new SPL140XU cross, seat all four bearing cups evenly
- Install snap rings and confirm positive engagement
- Reinstall driveshaft in original orientation and torque hardware
Availability and Support
Universal Driveshafts maintains deep inventory across all standard U-joint series. The SPL140XU is stocked for immediate shipment. For fleet orders or high-volume applications, contact our wholesale team for pricing on case quantities.
Alternative parts:
Additional information
| Brand | UDS |
|---|---|
| Cap dia 1 | 1.938 |
| Lube | Y |
| Partn number | SPL140XU |
| Series | SPL140 |
| Style | SPRTAB |
| Width 1 | 5.461 |
